Top Loading Wood Boilers That Are Easy To Load

Top Loading Wood Boilers That Are Easy To Load

NOTE: We offer high quality solutions for top loading wood boilers.
Call our National Sales Team at (608) 399-4847 to find out more information today!

Load with your back hoe or front-end loader!
Load from the side safely by hand!

You can check the models we have available by scrolling below this text along with other pictures.

Load it with even MORE logs for even longer burn times!

Don’t load your top load wood boiler multiple times per day as you do with traditional wood stoves.

All types of fuel can be used to create hot water (heat) such as stumps, wood chips, brush, wood by product, wood pellets and of course full-round logs.

The standard insulation on our furnaces is:

2″ of Morgan Super Wool with an R value of 56.8 on the tops and fronts and 3″ of Knauf ET Blanket + 1/4″ of Solar Guard for a combined R value of 23.1 on the rest of the furnace

The cold weather package is R-88.23 on tops and fronts and 68.4 on the rest of the furnace and is available for an additional $443.00

You can find out more insulation information including video demonstrations by going to the insulation page.

OVER 40 Large Top Loading Wood Boiler Models Available!!!

The Hyprotherm, Top Loading, Chest Type furnace is the only furnace in its class. All Hyprotherm top loading furnaces come with ½” fireboxes and 3/16” water jackets. Each comes with hydraulically opened top load fuel doors, which open with the touch of a finger. They can also be operated by remote from the comfort of your tractor seat (remote sold separately)

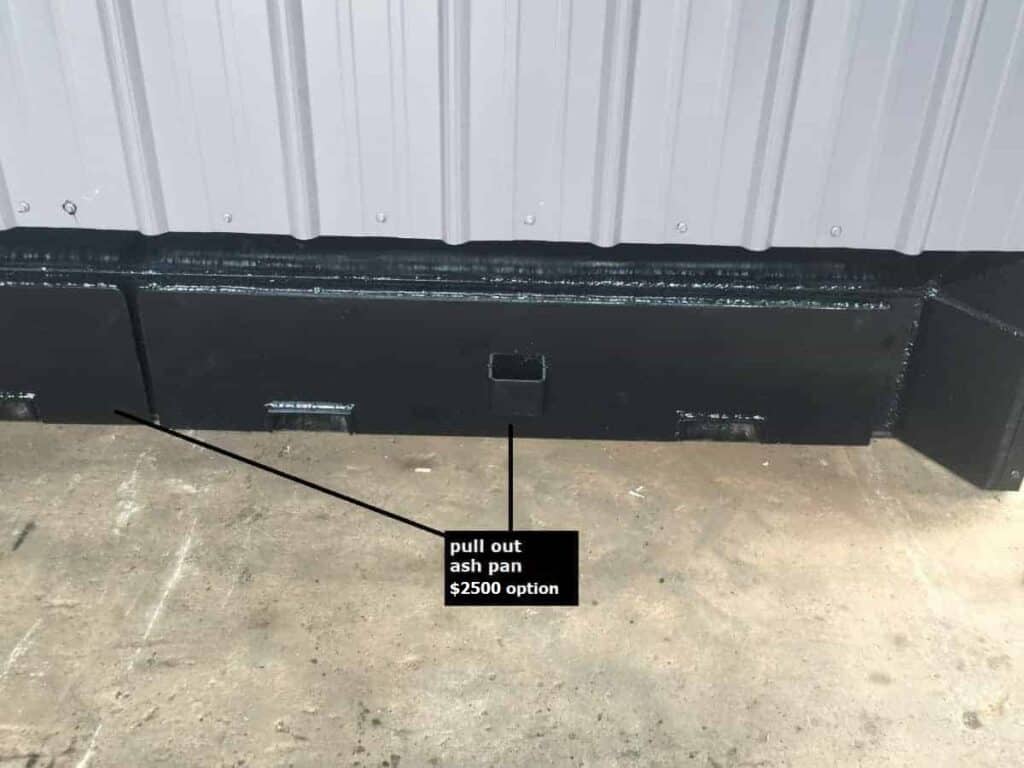

Removable ash pan is available upon request.
See the Hyprotherm Custom Options page for options available on your TL model

The five TL models below all have water in the lid

Hypro Therm TL-433 – 7,500sq

$9,827

Specifications
Water Capacity; 316 gallon
Water Jacket Thickness; 3/16”
Firebox Capacity; 36 cubic feet
Firebox Dimensions; ½” thick x 4’L x 3’W x 3’H
Fuel Door; 4’L x 3’W x 3’H

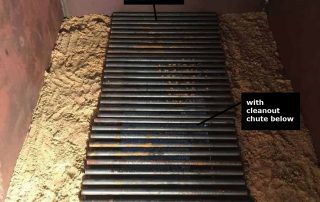

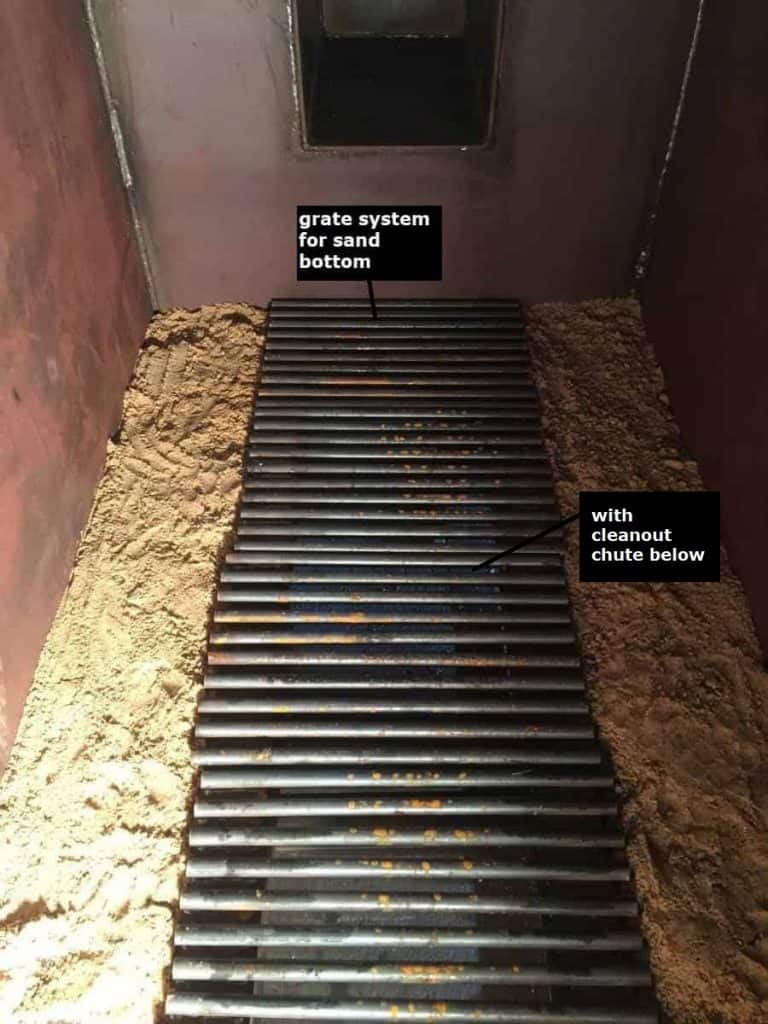

Grate System; Round steel (requires 4)
Ash Cleanout: Door only, no removable ash pan
BTUs; 308,416 @ 180 degree
Heatable Area; 7,500 sq ft
More Specifications
Length: 72”
Width: 58”
Height at roof peak (includes pallet):
Flue Length above peak:
Flue Pipe OD: 8.625”
Weight with standard features (includes pallet): 3400 lb
Manufacture and Transport pallet dimensions:
82” wide x 74” long x 6” tall
Crated Furnace Dimensions:

The pad sizes are the minimum needed for each furnace size and should give a 12” lip all around the furnace. The suggested spot to run the wires and plumbing thru the pad are the same for every size, which is 24” in from the back and 24” in from the right.

Hypro Therm TL-633 – 10,000sq

$13,437

Specifications
Water Capacity; 425 gallon
Water Jacket Thickness; 3/16”
Firebox Capacity; 54 cubic feet
Firebox Dimensions; ½” thick x 6’L x 3’W x 3’
Fuel Door; 6’L x 3’W x 3’H
Grate System; Round steel (requires 6)
Ash Cleanout: Door only, no removable ash pan
BTUs; 416,752 @ 180 degree
Heatable Area; 10,000 sq ft
More Specifications
Length: 72”
Width: 82”
Height at roof peak (includes pallet):
Flue Length above peak:
Flue Pipe OD: 8.625”
Weight with standard features (includes pallet): 5800 lb
Manufacture and Transport pallet dimensions:
106” wide x 74” long x 6” tall
Crated Furnace Dimensions:

The pad sizes are the minimum needed for each furnace size and should give a 12” lip all around the furnace. The suggested spot to run the wires and plumbing thru the pad are the same for every size, which is 24” in from the back and 24” in from the right.

Hypro Therm TL-533 – 11,500sq

$16,617

Specifications
Water Capacity; 486 gallon
Water Jacket Thickness; 3/16”
Firebox Capacity; 75 cubic feet
Firebox Dimensions; ½” thick x 5’L x 5’W x 3’H
Fuel Door; 5’L x 5’W x 3’H
Grate System; Round steel (requires 5)
Ash Cleanout: Door only, no removable ash pan
BTUs; 474,336 @ 180 degree
Heatable Area; 11,500 sq ft
More Specifications
Length: 96”
Width: 70”
Height at roof peak (includes pallet):
Flue Length above peak:
Flue Pipe OD: 8.625”
Weight with standard features (includes pallet): 5400 lb
Manufacture and Transport pallet dimensions:
94” wide x 98” long x 6” tall
Crated Furnace Dimensions:

The pad sizes are the minimum needed for each furnace size and should give a 12” lip all around the furnace. The suggested spot to run the wires and plumbing thru the pad are the same for every size, which is 24” in from the back and 24” in from the right.

Hypro Therm TL-934 – 19,000sq

$20,837

Specifications
Water Capacity; 699 gallon
Water Jacket Thickness; 3/16”
Firebox Capacity; 108 cubic feet
Firebox Dimensions; ½” thick x 9’L x 3’W x 4’H
Fuel Door; 9’L x 3’W x 4’H
Grate System; Round steel (requires 9)
Ash Cleanout: Door only, no removable ash pan
BTUs; 783,230 @ 180 degree
Heatable Area; 19,000 sq ft
More Specifications
Length: 72”
Width: 118”
Height at roof peak (includes pallet) :
Flue Length above peak:
Flue Pipe OD: 8.625”
Weight with standard features (includes pallet): 9200 lb
Manufacture and Transport pallet dimensions:
142” wide x 74” long x 6” tall
Crated Furnace Dimensions:

The pad sizes are the minimum needed for each furnace size and should give a 12” lip all around the furnace. The suggested spot to run the wires and plumbing thru the pad are the same for every size, which is 24” in from the back and 24” in from the right.

Hypro Therm TL-1350 – 26,639sq

$24,497

Specifications
Water Capacity; 951 gallon
Water Jacket Thickness; 3/16”
Firebox Capacity; 216 cubic feet
Firebox Dimensions; ½” thick x 6’L x 6’W x 6’H
Fuel Door; 6’L x 6’W x 6’H
Grate System; Round steel (requires 6)
Ash Cleanout: Door only, no removable ash pan
BTUs; 1,065,596 @ 180 degree
Heatable Area; 26,639 sq ft
More Specifications
Length: 108”
Width: 82”
Height at roof peak (includes pallet):
Flue Length above peak:
Flue Pipe OD: 8.625”
Weight with standard features (includes pallet): 9900 lb
Manufacture and Transport pallet dimensions:
106” wide x 110” long x 6” tall
Crated Furnace Dimensions:

The pad sizes are the minimum needed for each furnace size and should give a 12” lip all around the furnace. The suggested spot to run the wires and plumbing thru the pad are the same for every size, which is 24” in from the back and 24” in from the right.

Important Information on the Difference Between 6/6 and 12/12

The 6/6 means there is 6″ of water around both the ends and the sides of the fire box, and the 12/12 means there are 12″ of water on the ends and 12″ on the sides. Just to explain why one version of TL-WT holds so much more water, some models like the 1350 with its 6′ wide fire box can only have a six inch wide water jacket or they would be too wide to transport. The length can be longer so we make a TL-1350-WT for example 12/6 with 12″ on the ends adding to the length but only 6″ per side.

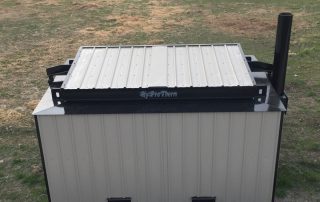

The below models have waterless lids.

Hyprotherm Top Loading;
Chest Type Furnaces
A Brief overview

Top loader names explained

HyProTherm TL = Original TL furnace, has water in the lid.

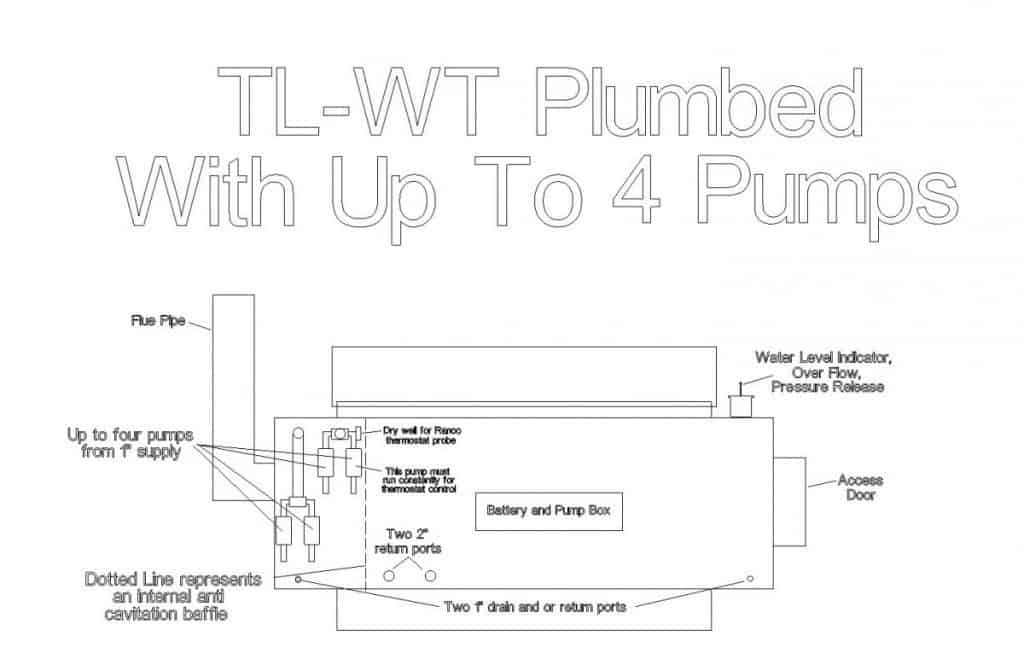

HyProTherm TL – WT = Version II of the TL furnace line, has no water in the lid.
HyProTherm TL – WT, 12/12 = 12” of water on the ends, 12” on the sides, see (A)
HyProTherm TL – WT, 12/6 = 12” of water on the ends 6” on the sides, see (B)
HyProTherm TL – WT, 6/6 = 6” of water on the ends 6” on the sides, see (C)

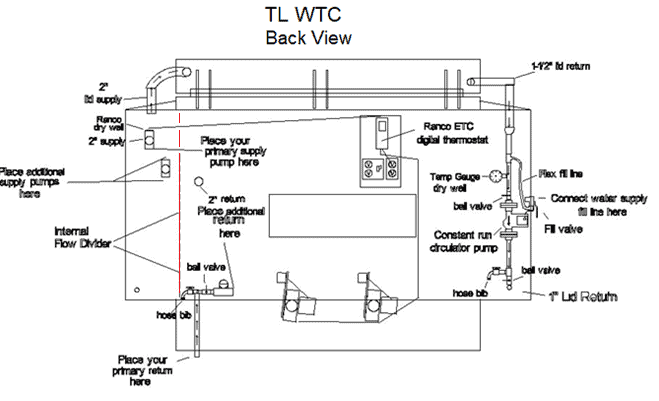

HyProTherm TL – WTC = same design as TL-WT, but with water in the lid. This is not the same design as the original TL series.

tl-12x12
tl-12x6

RED = Original Water in lid top loader
BLUE = 6” of water
PINK = 10” of water
GREEN = 12” of water
ORANGE = 14” of water
BLACK = custom not on product list

4″ Fireboxes

Size/Model Firebox Dimensions Firebox Capacity f³​ Water Capacity Retail Price BTU Heats ft²
TL-433 (4L’x3W’x3H’) 36 CF 308 Gallon $9,827 308,416 7,500
TL-433-WT12/12 (4L’x3W’x3H’) 36 CF 348 Gallon $9,827 389,934 9,453
TL-433-WTC12/12 80 gallon in the lid 428 Gallon $10,777 479,574 11,626
TL-446-WT6/6 (4L’x4W’x6H’) 96 CF 357 Gallon $16,647 400,019 9,697
TL-446-WTC6/6 80 gallon in the lid 437 Gallon $17,597 489,469 11,866
TL-446 (4L’x4W’x6H’) 96 CF 554 Gallon $17,177 620,757 15,049
TL-446-WT10/10 (4L’x4W’x6H’) 96 CF 665 Gallon $17,177 745,133 18,064
TL-446-WTC10/10 80 gallon in the lid 745 Gallon $18,127 834,773 20,236
TL-454-WT6/6 (4L’x5W’x4H’) 80 CF 244 Gallon $14,847 250,992 6,085
TL-454-WTC6/6 100 gallon in the lid 344 Gallon $15,797 385,452 9,344
TL-454 (4L’x5W’x4H’) 80 CF 486 Gallon $15,347 544,563 13,202
TL-454-WT12/12 (4L’x5W’x4H’) 80 CF 580 Gallon $15,347 649,890 15,755
TL-454-WTC12/12 100 gallon in the lid 680 Gallon $16,297 761,940 18,471

5″ Fireboxes

Size/Model Firebox Dimensions Firebox Capacity f³​ Water Capacity Retail Price BTU Heats ft²
TL-534-WT6/6 (5L’x3W’x4H’) 60 CF 224 Gallon $13,887 250,992 6,085
TL-534-WTC6/6 75 gallon in the lid 299 Gallon $14,837 350,030 8,486
TL-534 (5L’x3W’x4H’) 60 CF 442 Gallon $14,307 495,261 12,006
TL-534-WT12/12 (5L’x3W’x4H’) 60 CF 533 Gallon $14,307 597,227 14,478
TL-534-WTC12/12 75 gallon in the lid 608 Gallon $15,257 681,264 16,515
TL-553-WT6/6 (5L’x5W’x3H’) 75 CF 303 Gallon $16,117 339,512 8,231
TL-553-WTC6/6 125 gallon in the lid 428 Gallon $17,067 479574 11,626
TL-553 (5L’x5W’x3H’) 75 CF 479 Gallon $16,617 474,336 11,500
TL-553-WT 12/12 (5L’x5W’x3H’) 75 CF 447 Gallon $16,617 500,864 12,142
TL-553-WTC12/12 125 gallon in the lid 572 Gallon $17,567 640,926 15,538
TL-555-WT6/6 (5L’x5W’x5H’) 125 CF 344 Gallon $19,757 385,452 9,344
TL-555-WTC6/6 125 gallon in the lid 469 Gallon $20,707 525,515 12,740
TL-555-WT12/12 (5L’x5W’x5H’) 125 CF 806 Gallon $20,457 903,123 21,894
TL-555-WTC12/12 125 gallon in the lid 931 Gallon $21,407 1,043,186 25,289
TL-556-WT6/6 (5L’x5W’x6H’) 150 CF 426 Gallon $21,727 477,333 11,572
TL-556-WTC6/6 125 gallon in the lid 551 Gallon $22,677 617,396 14,697
TL-556 (5L’x5W’x6H’) 150 CF 715 Gallon $22,577 801,158 19,442
TL-556-WT12/12 (5L’x5W’x6H’) 150 CF 985 Gallon $22,577 1,103,693 26,756
TL-556-WTC12/12 125 gallon in the lid 1,110 Gallon $23,527 1,243,755 26,756

6″ Fireboxes

Size/Model Firebox Dimensions Firebox Capacity f³​ Water Capacity Retail Price BTU Heats ft²
TL-633-WT6/6 (6L’x3W’x3H’) 54 CF 173 Gallon $12,987 193,847 4,699
TL-633-WTC6/6 90 gallon in the lid 263 Gallon $13,937 564,732 13,690
TL-633 (6L’x3W’x3H’) 54 CF 425 Gallon $13,437 416,752 10,000
TL-633-WT12/12 (6L’x3W’x3H’) 54 CF 419 Gallon $13,437 469,490 11,382
TL-633-WTC12/12 90 gallon in the lid 504 Gallon $14,387 564,732 13,690
TL-634-WT6/6 (6L’x3W’x4H’) 72 CF 224 Gallon $14,997 250,992 6,085
TL-634-WTC6/6 90 gallon in the lid 314 Gallon $15,947 351,837 8,529
TL-634 (6L’x3W’x4H’) 72 CF 478 Gallon $15,417 535,599 12,984
TL-634-WT12/12 (6L’x3W’x4H’) 72 CF 583 Gallon $15,417 653,252 15,836
TL-634-WTC12/12 90 gallon in the lid 673 Gallon $16,367 754,097 18,281
TL-644-WT6/6 (6L’x4W’x4H’) 96 CF 404 Gallon $16,787 452,682 10,974
TL-644-WTC6/6 120 gallon in the lid 524 Gallon $17,737 587,142 14,234
TL-644 (6L’x4W’x4H’) 96 CF 554 Gallon $17,247 620,757 15,049
TL-644-WT12/12 (6L’x4W’x4H’) 96 CF 628 Gallon $17,247 703,674 17,059
TL-644-WTC12/12 120 gallon in the lid 748 Gallon $18,197 703,674 17,059
TL-1350-WT6/6 (6L’x6W’x6H’) 216 CF 491 Gallon $23,847 550,166 13,337
TL-1350-WTC6/6 180 gallon in the lid 671 Gallon $24,797 751,865 18,227
TL-1350 (6L’x6W’x6H’) 216 CF 889 Gallon $24,497 1,065,596 26,639
TL-1350-WT12/6 (6L’x6W’x6H’) 216 CF 897 Gallon $24,497 1,005,089 24,366
TL-1350-WTC12/6 180 gallon in the lid 1,077 Gallon $25,447 838,134 20,318

8″ Fireboxes

Size/Model Firebox Dimensions Firebox Capacity f³​ Water Capacity Retail Price BTU Heats ft²
TL-844-WT 6/6 (8L’x4W’x4H’) 128 CF 264 Gallon $20,647 295,812 7,171
TL-844-WTC 6/6 160 gallon in the lid 424 Gallon $22,497 475,092 11,517
TL-844 (8L’x4W’x4H’) 128 CF 683 Gallon $21,357 765,302 18,552
TL-844-WT12/12 (8L’x4W’x4H’) 128 CF 726 Gallon $21,357 813,483 19,720
TL-844-WTC12/12 160 gallon in the lid 886 Gallon $23,217 992,763 24,066
TL-854-WT6/6 (8L’x5W’x4H’) 160 CF 318 Gallon $21,577 356,319 8,638
TL-854-WTC6/6 198 gallon in the lid 516 Gallon $23,437 578,178 14,016
TL-854 (8L’x5W’x4H’) 160 CF 771 Gallon $22,277 863,906 20,943
TL-854-WT12/12 (8L’x5W’x4H’) 160 CF 767 Gallon $22,277 859,424 20,835
TL-854-WTC12/12 198 gallon in the lid 965 Gallon $24,137 1,081,283 26,213

9″ Fireboxes

Size/Model Firebox Dimensions Firebox Capacity f³​ Water Capacity Retail Price BTU Heats ft²
TL-934-WT6/6 (9L’x3W’x4H’) 108 CF 314 Gallon $20,137 351,837 8,529
TL-934-WTC6/6 135 gallon in the lid 449 Gallon $21,997 503,105 12,196
TL-934 (9L’x3W’x4H’) 108 CF 651 Gallon $20,837 783,230 19,000
TL-934-WT12/12 (9L’x3W’x4H’) 108 CF 735 Gallon $20,837 823,568 20,014
TL-934-WTC12/12 135 gallon in the lid 870 Gallon $22,697 974,835 23,632
TL-944-WT6/6 (9L’x4W’x4H’) 144 CF 386 Gallon $21,987 432,513 10,485
TL-944-WTC6/6 180 gallon in the lid 566 Gallon $23,847 634,203 15,375
TL-944 (9L’x4W’x4H’) 144 CF 747 Gallon $22,657 837,014 20,291
TL-944-WT12/12 (9L’x4W’x4H’) 144 CF 774 Gallon $22,657 867,267 21,025
TL-944-WTC12/12 180 gallon in the lid 954 Gallon $24,517 1,068,957 25,914
TL-955-WT6/6 (9L’x5W’x5H’) 225 CF 449 Gallon $25,387 503,105 12,186
TL-955-WTC6/6 225 gallon in the lid 674 Gallon $27,247 755,217 18,308
TL-955-WT12/12 (9L’x5W’x5H’) 225 CF 1,053 Gallon $26,317 1,179,887 28,603
TL-955-WTC12/12 225 gallon in the lid 1,278 Gallon $28,177 1,431,999 34,715
TL-955-WT14/12 (9L’x5W’x5H’) 225 CF 1,287 Gallon $28,147 1,442,084 34,860
TL-955-WTC14/12 225 gallon in the lid 1,512 Gallon $29,997 1,694,196 47,071

10″ Fireboxes

Size/Model Firebox Dimensions Firebox Capacity f³​ Water Capacity Retail Price BTU Heats ft²
TL-1044-WT6/6 (10L’x4W’x4H’) 160 CF 346 Gallon $23,747 387,693 9,399
TL-1044-WTC6/6 200 gallon in the lid 546 Gallon $25,857 611,793 14,831
TL-1044-WT12/12 (10L’x4W’x4H’) 160 CF 823 Gallon $24,487 922,172 22,356
TL-1044-WTC12/12 200 gallon in the lid 1,023 Gallon $26,607 1,146,272 27,788
TL-1054-WT6/6 (10L’x5W’x4H’) 200 CF 355 Gallon $25,547 397,778 9,643
TL-1054-WTC6/6 250 gallon in the lid 605 Gallon $27,667 783,230 18,987
TL-1054-WT12/12 (10L’x5W’x4H’) 200 CF 860 Gallon $26,317 963,630 22,361
TL-1054-WTC12/12 250 gallon in the lid 1,110 Gallon $28,437 1,243,755 30,152
TL-1055-WT6/6 (10L’x5W’x5H’) 250 CF 475 Gallon $27,247 532,238 12,903
TL-1055-WTC6/6 250 gallon in the lid 725 Gallon $29,367 812,363 19,694
TL-1055-WT12/12 (10L’x5W’x5H’) 250 CF 1,115 Gallon $28,147 1,249,358 30,287
TL-1055-WTC12/12 250 gallon in the lid 1,365 Gallon $30,267 1,529,483 37,078

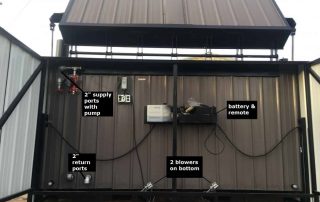

TL-1056-WT6/6 (10L’x5W’x6H’) 300 CF 752 Gallon $29,037 842,616 20,427
TL-1056-WTC6/6 250 gallon in the lid 1,002 Gallon $31,147 1,122,741 27,218
TL-1056-WT12/12 (10L’x5W’x6H’) 300 CF 1,369 Gallon $29,977 1,533,965 37,187
TL-1056-WTC12/12 250 gallon in the lid 1,619 Gallon $32,087 1,814,090 43,978

12″ Fireboxes

Size/Model Firebox Dimensions Firebox Capacity f³​ Water Capacity Retail Price BTU Heats ft²
TL-1256-WT6/6 (12L’x5W’x6H’) 360 CF 667 Gallon $31,467 747,374 18,118
TL-1256-WTC6/6 299 gallon in the lid 966 Gallon $33,587 1,373,733 33,303
TL-1256-WT12/12 (12L’x5W’x6H’) 360 CF 1,527 Gallon $32,647 1,711,004 41,479
TL-1256-WTC12/12 299 gallon in the lid 3,627 Gallon $34,767 1,373,733 33,303

14″ Fireboxes

Size/Model Firebox Dimensions Firebox Capacity f³​ Water Capacity Retail Price BTU Heats ft²
TL-1456-WT6/6 (14L’x5W’x6H’) 420 CF 897 Gallon $44,787 1,005,089 24,366
TL-1456-WTC6/6 329 gallon in the lid 1,226 Gallon $47,437 1,373,733 33,303
TL-1456-WT12/12 (14L’x5W’x6H’) 420 CF 1,885 Gallon $45,987 2,112,143 51,203
TL-1456-WTC12/12 329 gallon in the lid 2,214 Gallon $48,637 2,480,787 60,140

Save Money! Logs can cost up to 2/3 less than split wood and burns more efficiently due to size.

Less work! No need to cut and split wood, just put whole logs in and close the lid.

Heat very large buildings such as: Greenhouses, Barns, Drive sheds, commercial buildings and your home and domestic hot water.

Load your top loading wood boiler with machinery such as tractors and fork lifts or load from the side safely by hand!
