Now with a 2 foot x 2 foot door on all models
and a REMOVABLE ash pan!
Check out our ThermoWind Video below
If you are interested in turning the forced air furnace into one that burns coal,
you can simply add the shaker grate system that is demonstrated in the video below for $576 extra!
Rated to Heat up to 6875 sq. ft.
55″ deep firebox with 2000 CFM 3-speed fan
It is rated at 165,000 BTU
burning a good seasoned hardwood like oak
The standard insulation on our furnaces is:
2″ of Morgan Super Wool with an R value of 56.8 on the tops and fronts and 3″ of Knauf ET Blanket + 1/4″ of Solar Guard for a combined R value of 23.1 on the rest of the furnace
The cold weather package is R-88.23 on tops and fronts and 68.4 on the rest of the furnace and is available for an additional $307.00
You can find out more insulation information including video demonstrations by going to the insulation page.

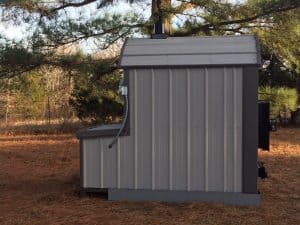

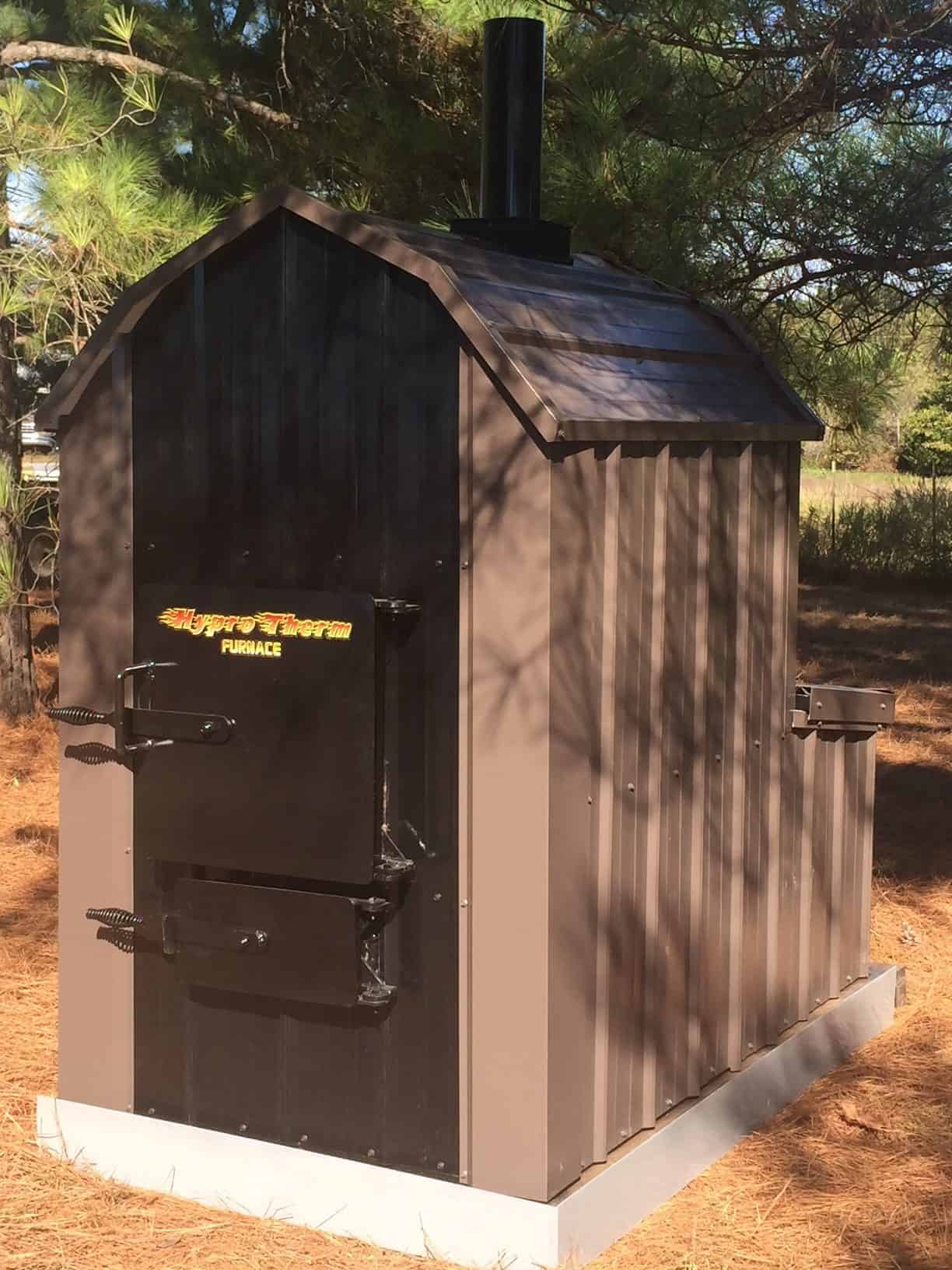

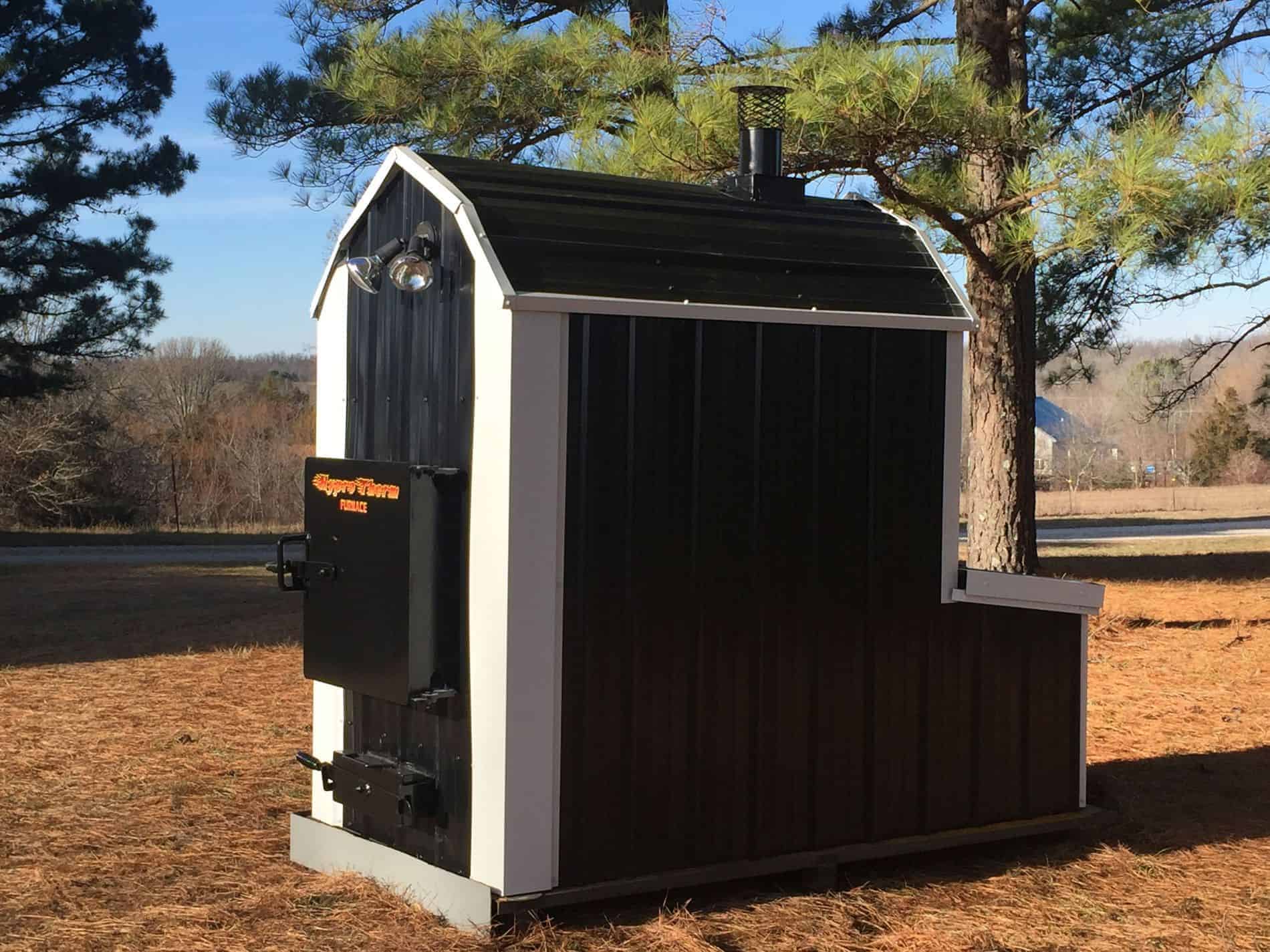

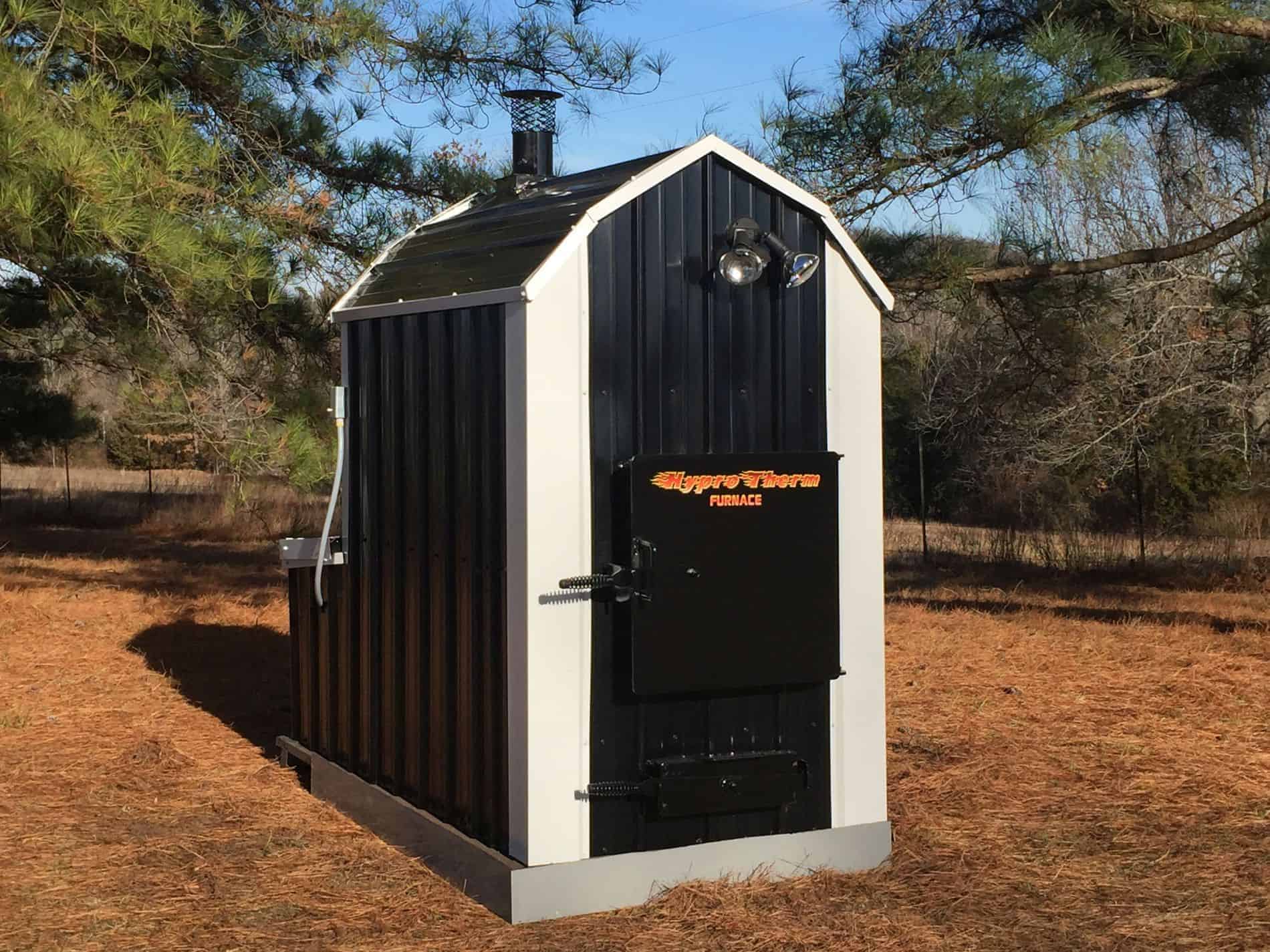

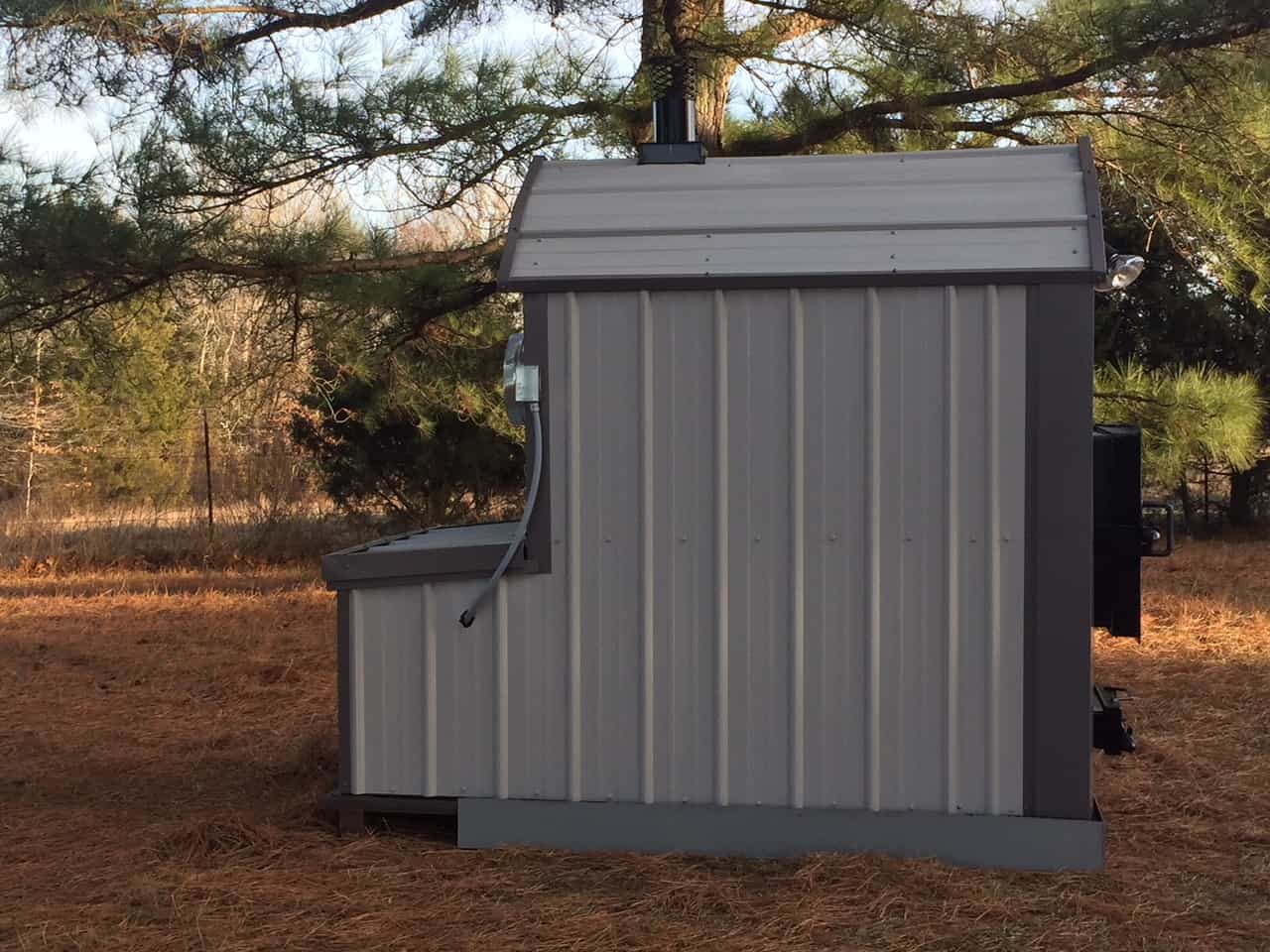

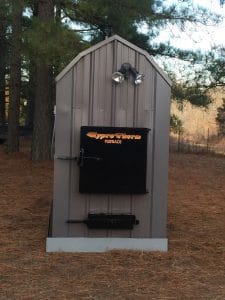

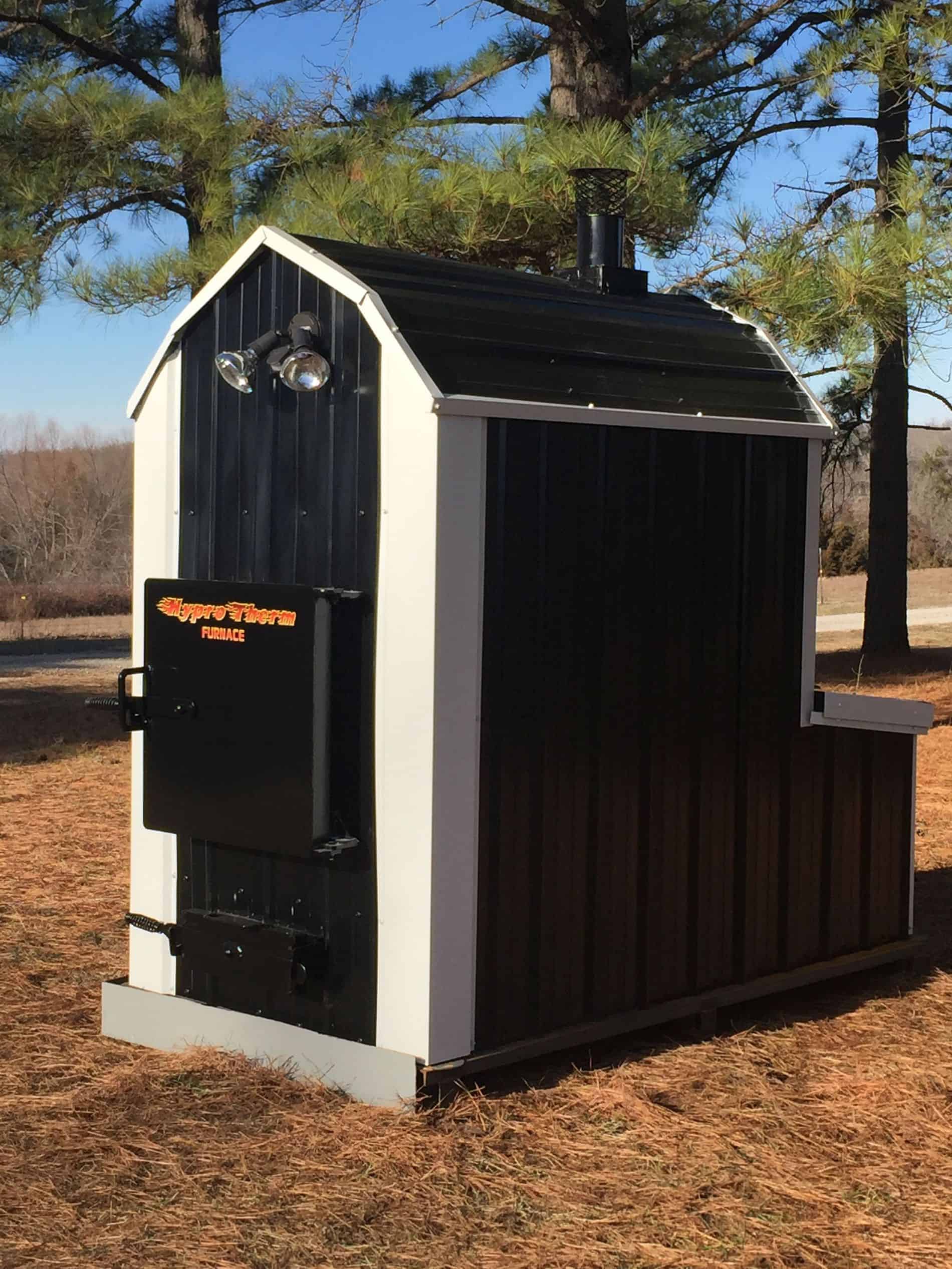

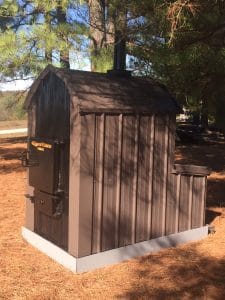

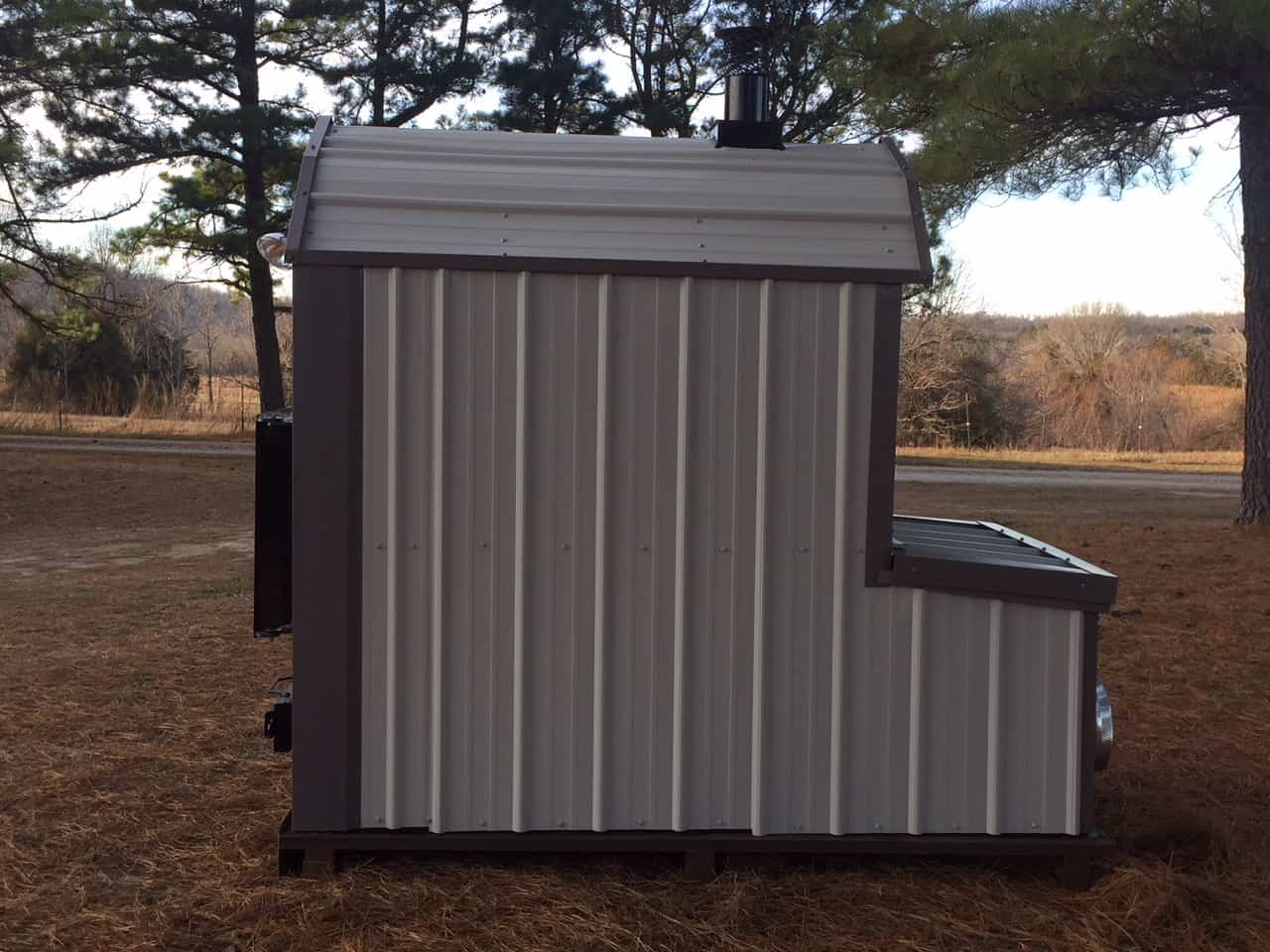

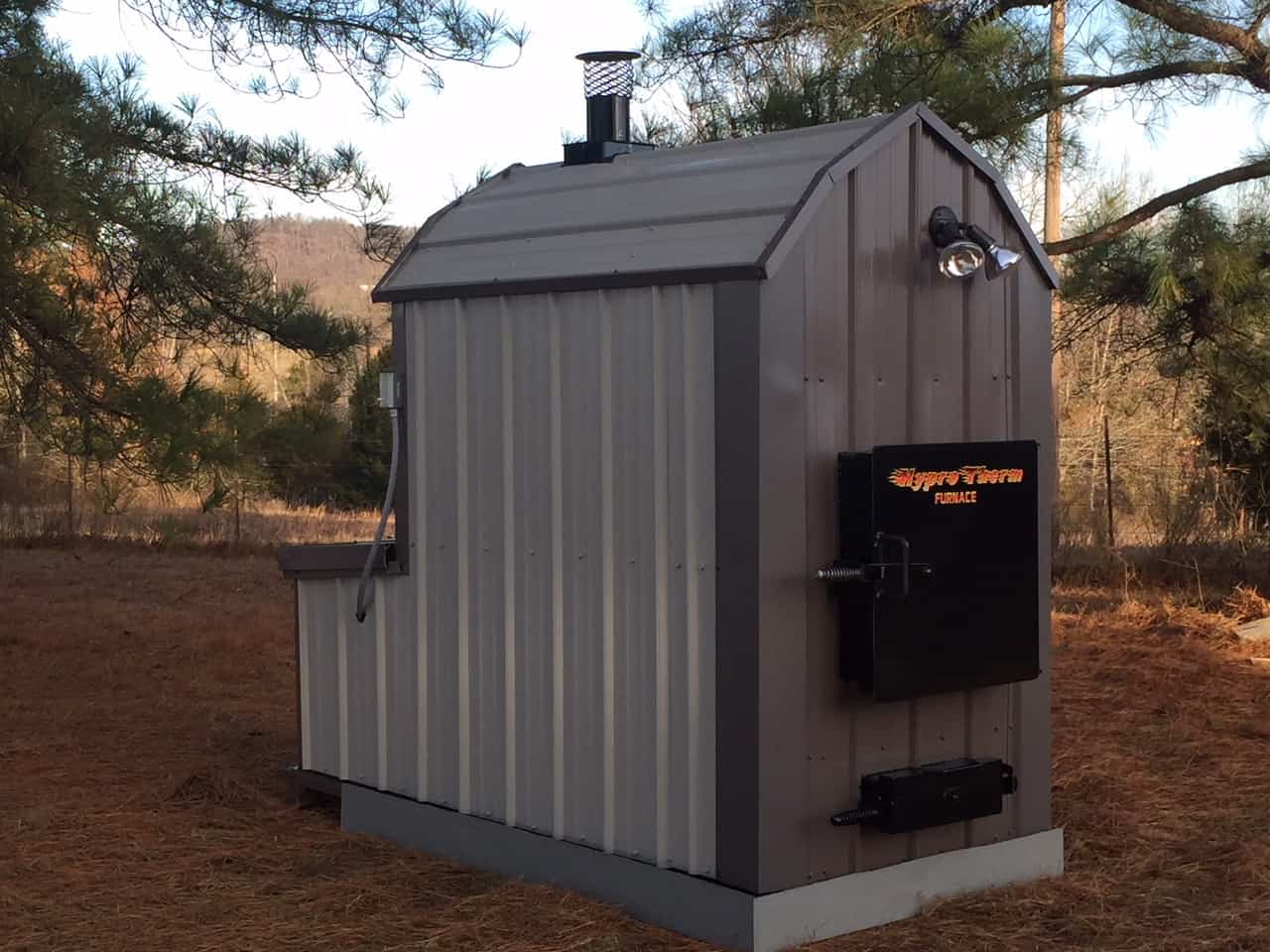

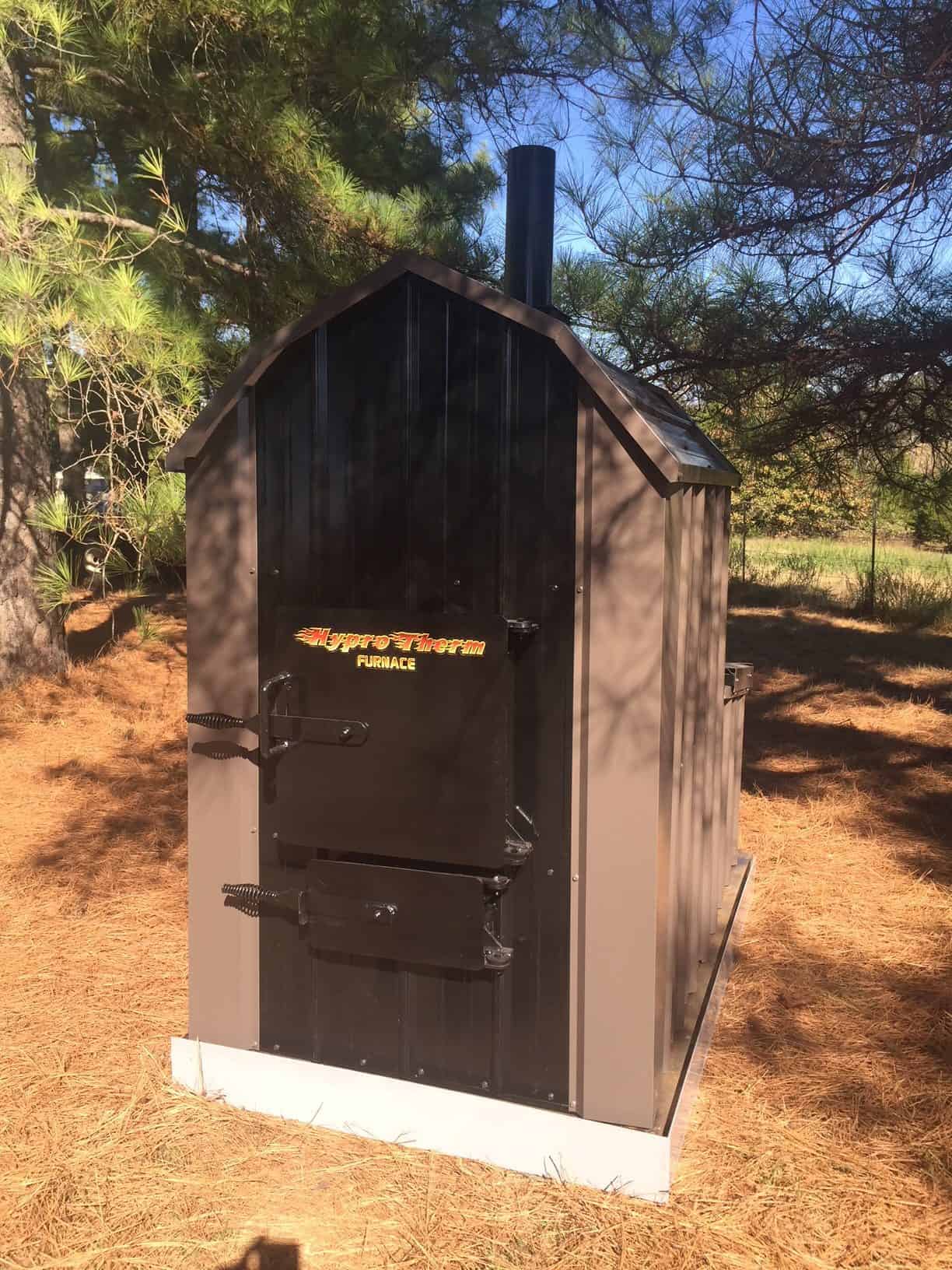

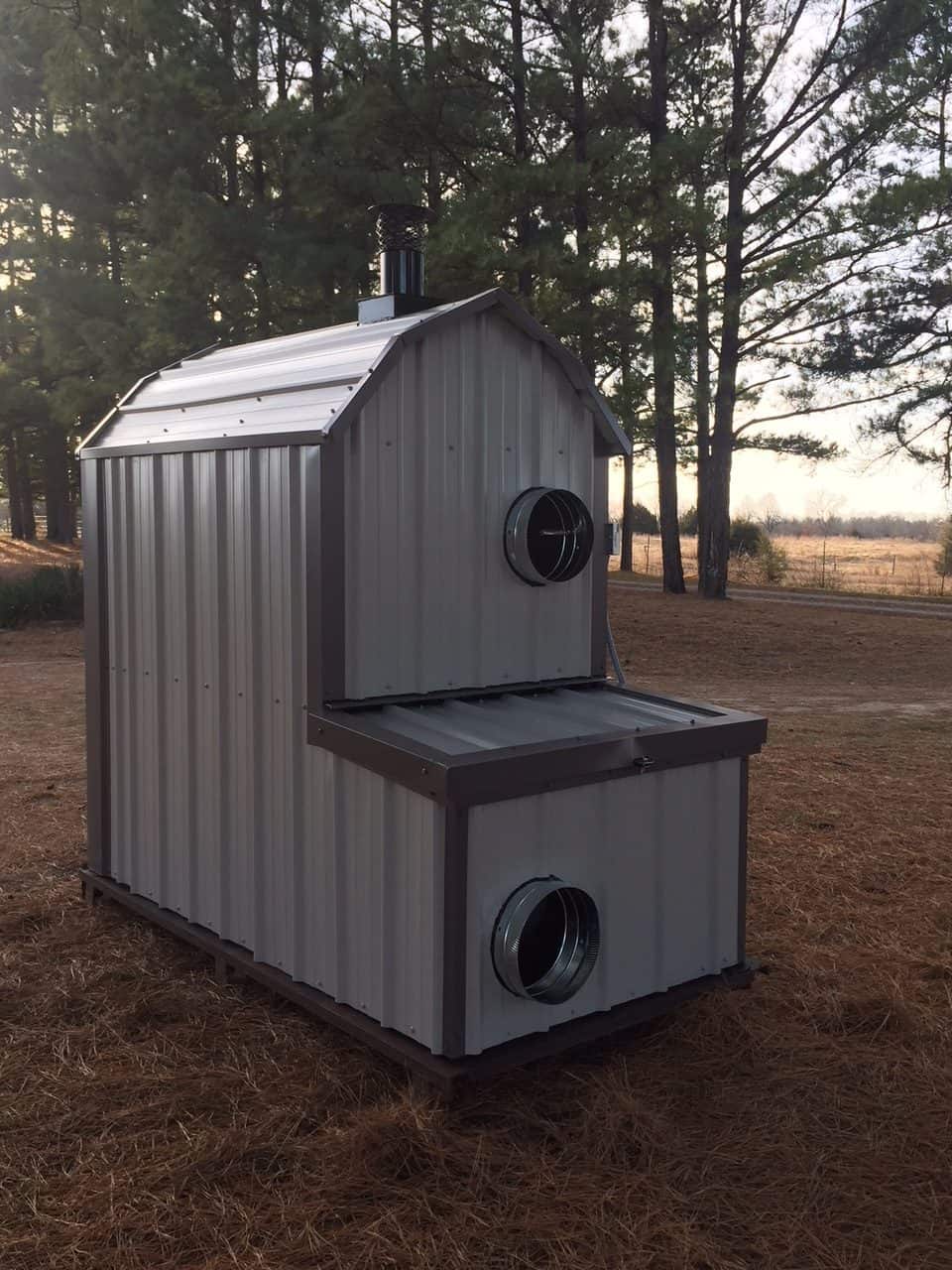

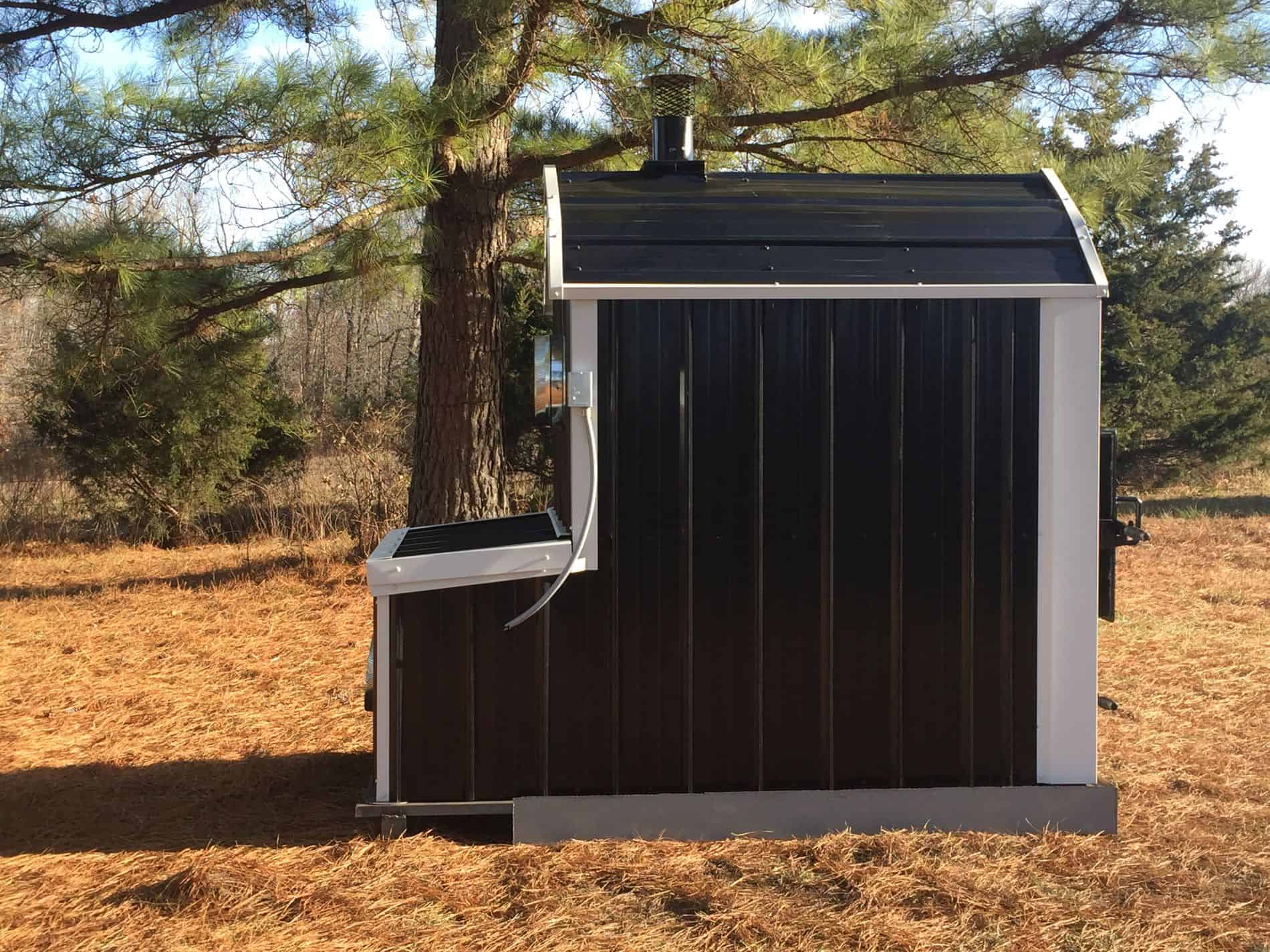

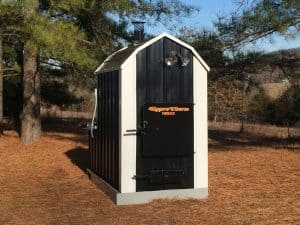

Hyprotherm Thermowind 3000 Specifications and Dimensions
Air Jacket Thickness; 1/8”
Firebox Capacity; 33 cubic feet
Firebox Dimensions; 1/4” thick 56”L x 30”W x 34”H

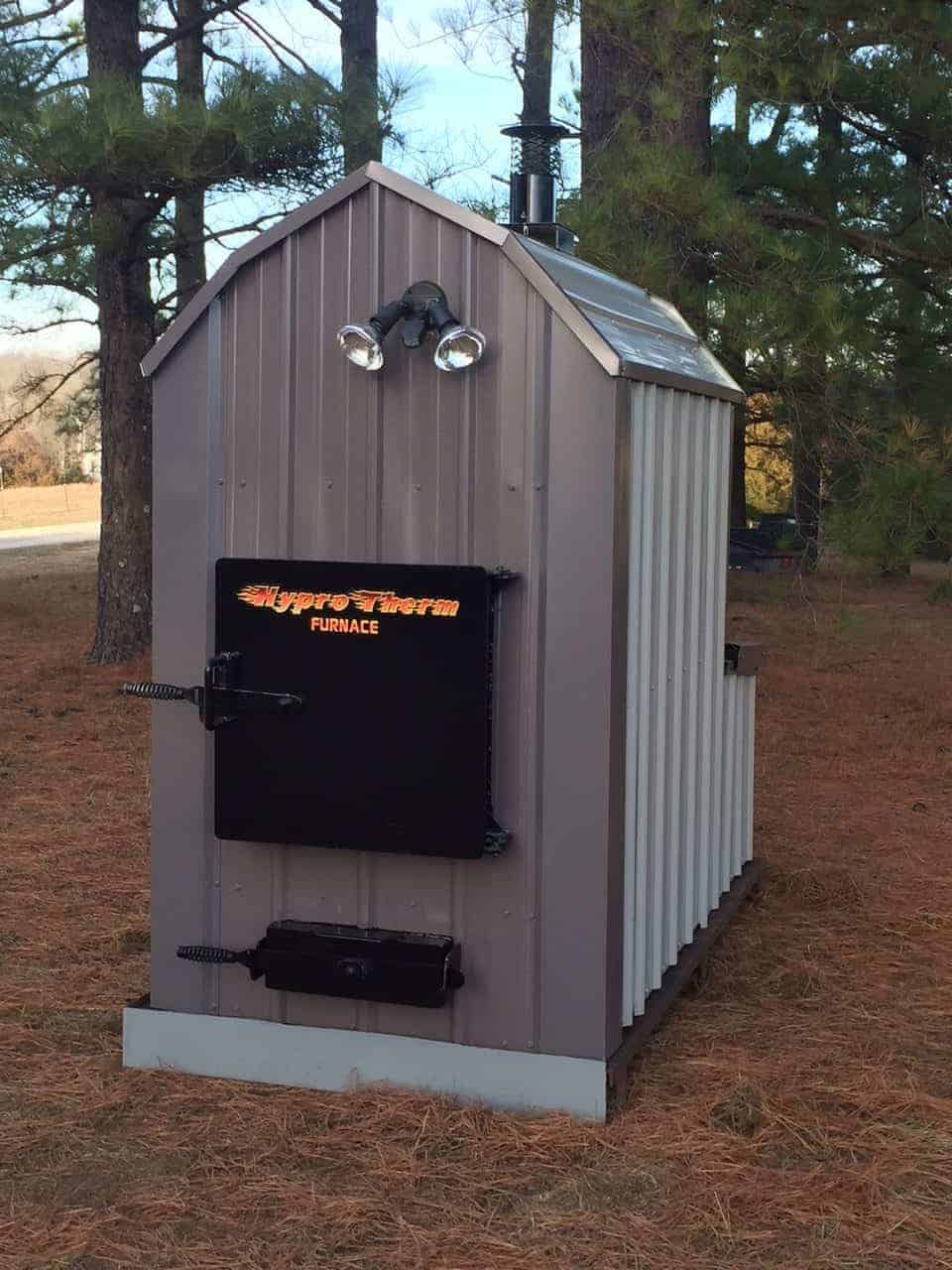

Fuel Door; 24” x 24”
Grate System; Round Steel (requires 2)
Ash Cleanout: Removable Ash Pan
Heatable Area; 6,875 sq ft
Height at roof peak (includes pallet): 88”
Flue Length above peak: 8”
Flue Pipe: Schedule 40 x 5.375” OD
Weight with standard features (includes pallet): 2340 lb
Weight including shipping crate: 2600 lb

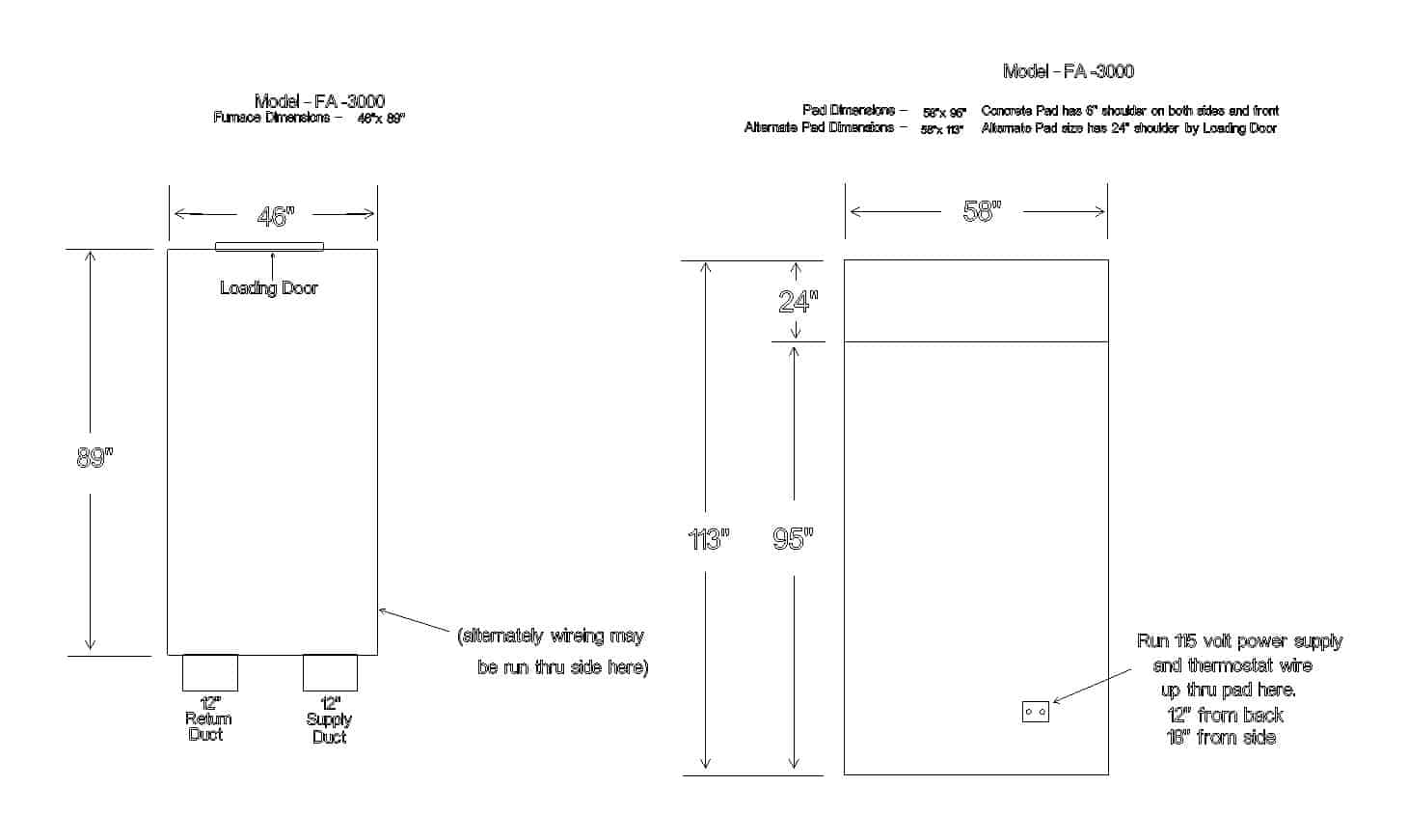

Manufacture and Transport pallet dimensions:
48.5” wide x 94” long x 6” tall
Crated Furnace Dimensions:
