Now with a 2 foot x 2 foot door on all models
and a REMOVABLE ash pan!
Check out our ThermoWind Video below
If you are interested in turning the forced air furnace into one that burns coal,
you can simply add the cast iron shaker grate system that is demonstrated in the video below for $576 extra!
Has a bigger 2000 CFM blower and a bigger firebox (42″ vs. 28″ deep)
it’s 50% bigger then the TW 1000 and is
It is rated at 135,000 BTU
burning a good seasoned hardwood like oak
The Standard Insulation Package on our furnaces is:
Three inches of Knauf ET Blanket = R- 11.5 + One quarter inch Solar Guard = R- 11.6 on side walls for a standard insulation of R- 23.10
Two inches of Morgan Super Wool Blanket on front of furnace and in the door for a standard insulation of R- 56.80
If you want the best insulated furnace in the industry, we offer a Cold Weather Package for an additional $307.00.
This amazing package covers the entire furnace in Morgan Super Wool instead of Knauf ET. The Cold Weather Package on our Hyprotherm furnaces is:
Two inches of Morgan Super Wool Blanket = R- 56.80 + One quarter inch Solar Guard = R- 11.60 for a Cold Weather Package R-value of 68.40
Three inches of Morgan Super Wool Blanket on front of furnace and in the door for a Cold Weather Package R-value of 88.23
You can actually put your hand under Morgan Super Wool, heat the other side of it with a blow torch and not burn your hand! Don’t believe us? Find that video and more insulation information by going to the insulation page.

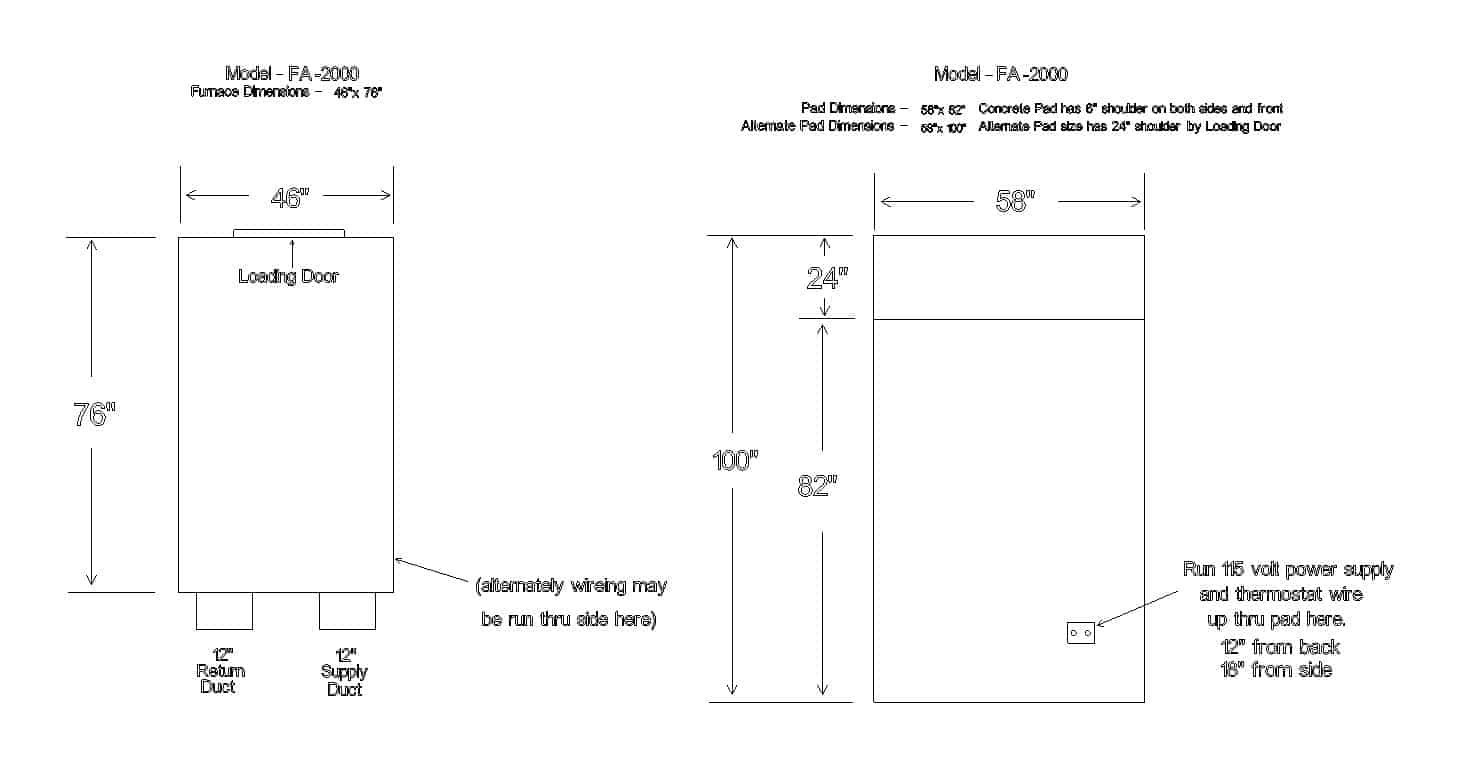

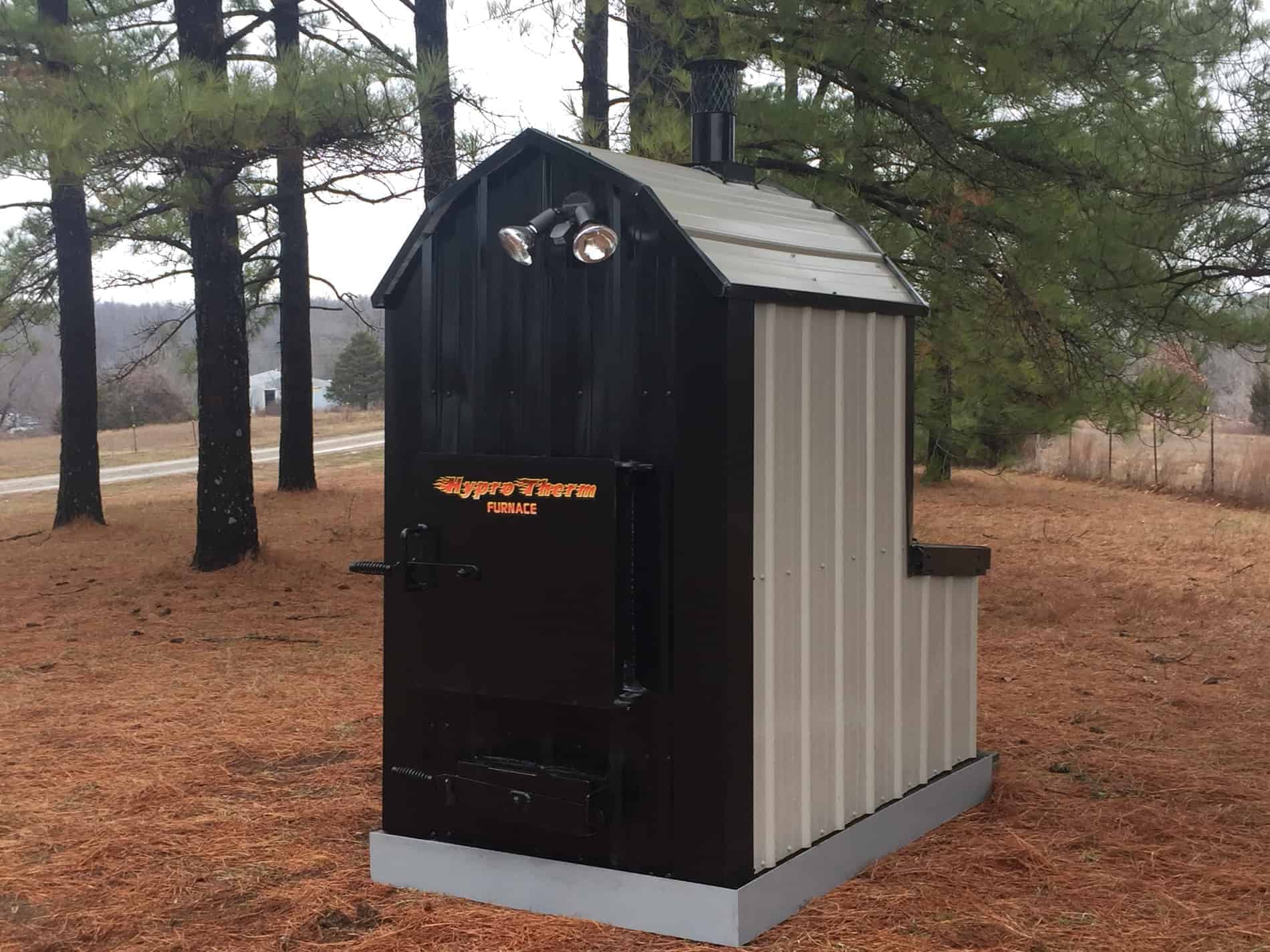

Hyprotherm Thermowind 2000 Specifications and Dimensions
Air Jacket Thickness; 1/8”
Firebox Capacity; 24 cubic feet
Firebox Dimensions; 1/4” thick 42”L x 30”W x 34”H
Fuel Door; 24” x 24”
Grate System; Round Steel (requires 2)
Ash Cleanout: Removable Ash Pan
Heatable Area; 5,500 sq ft
Height at roof peak (includes pallet): 88”
Flue Length above peak: 8”
Flue Pipe: Schedule 40 x 5.375” OD
Weight with standard features (includes pallet): 2220 lb
Weight including shipping crate: 2460 lb
Manufacture and Transport pallet dimensions:
48.5” wide x 82” long x 6” tall
Crated Furnace Dimensions:
97″L x 51″W x 95″H

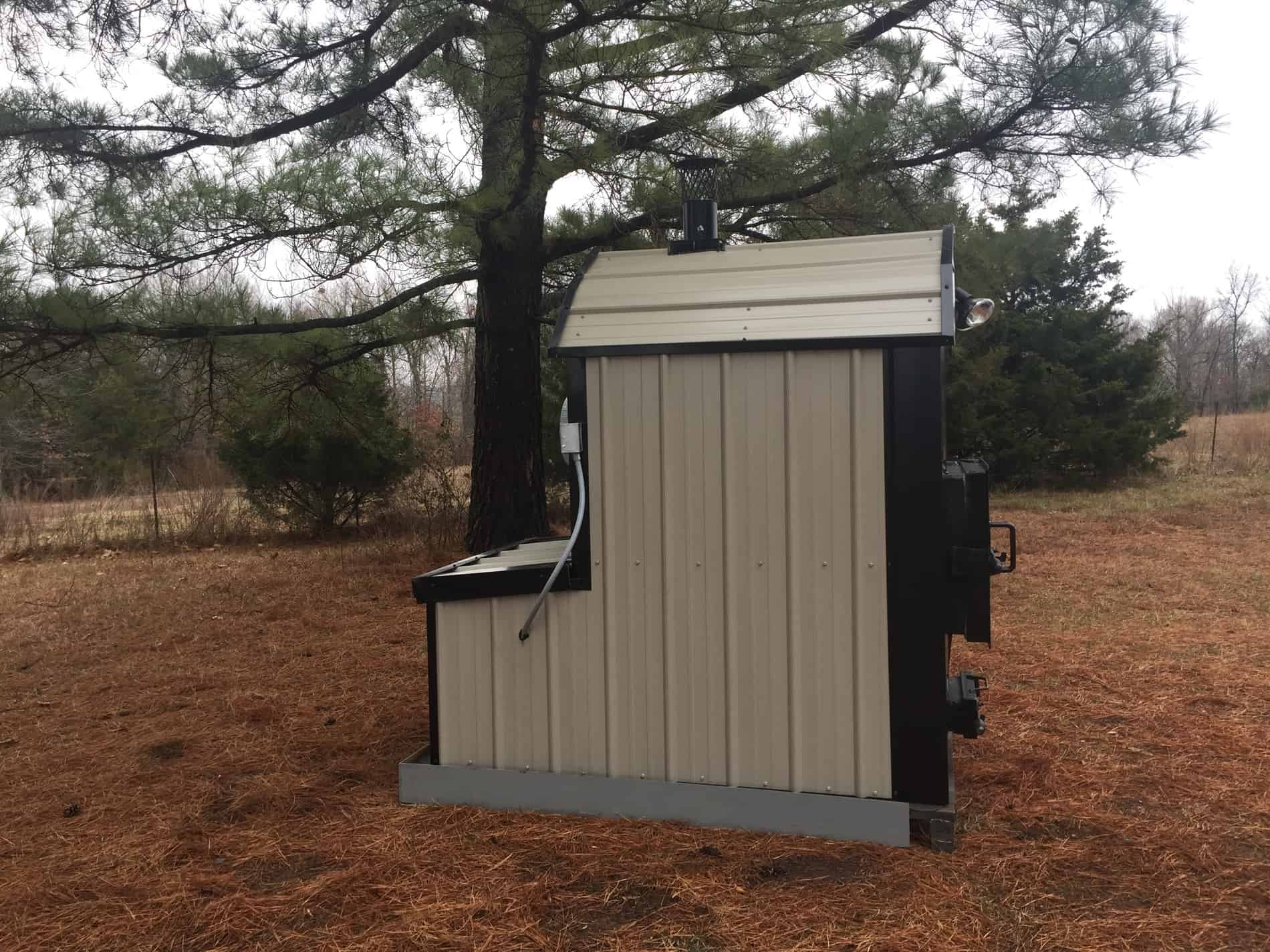

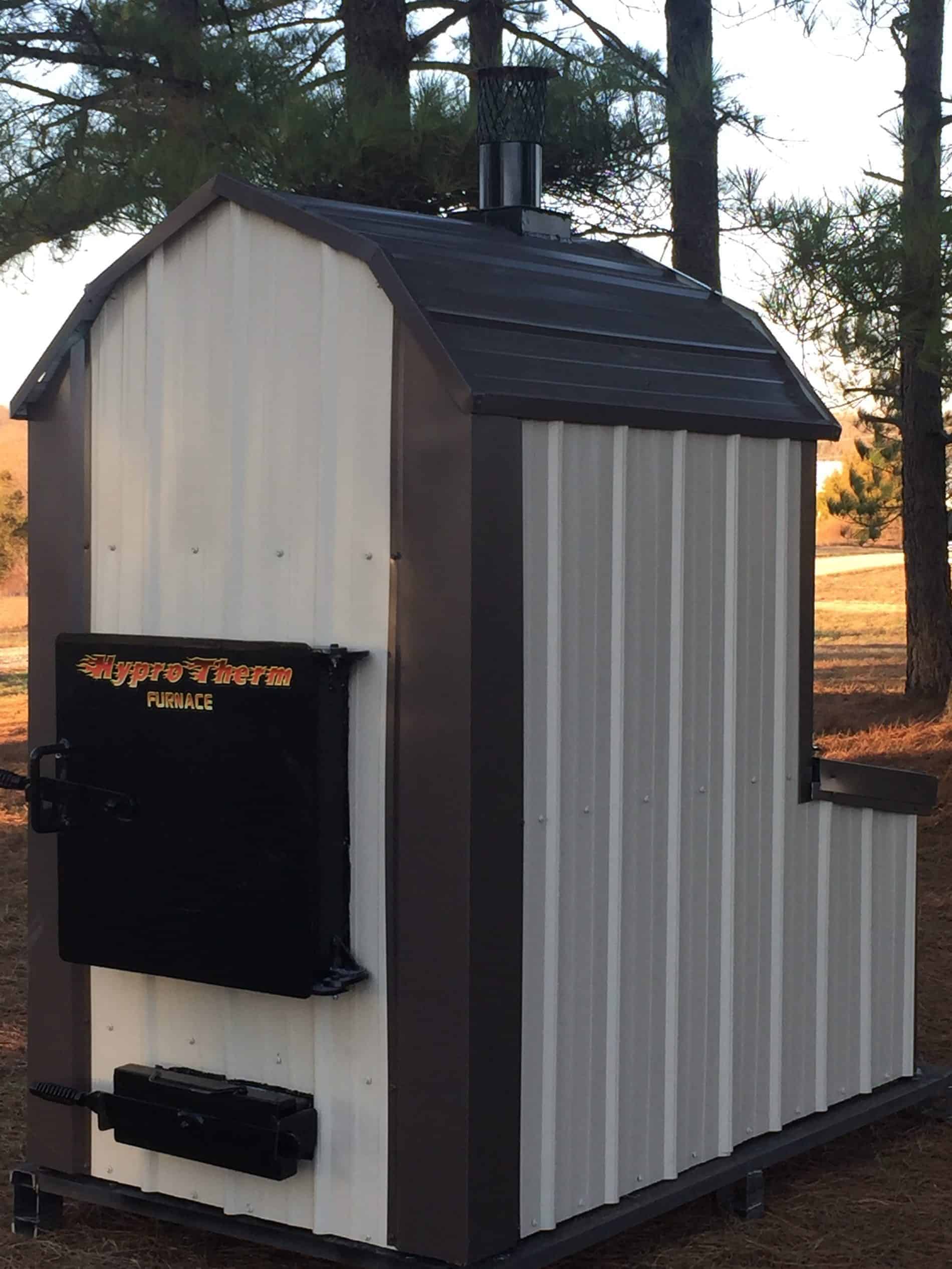

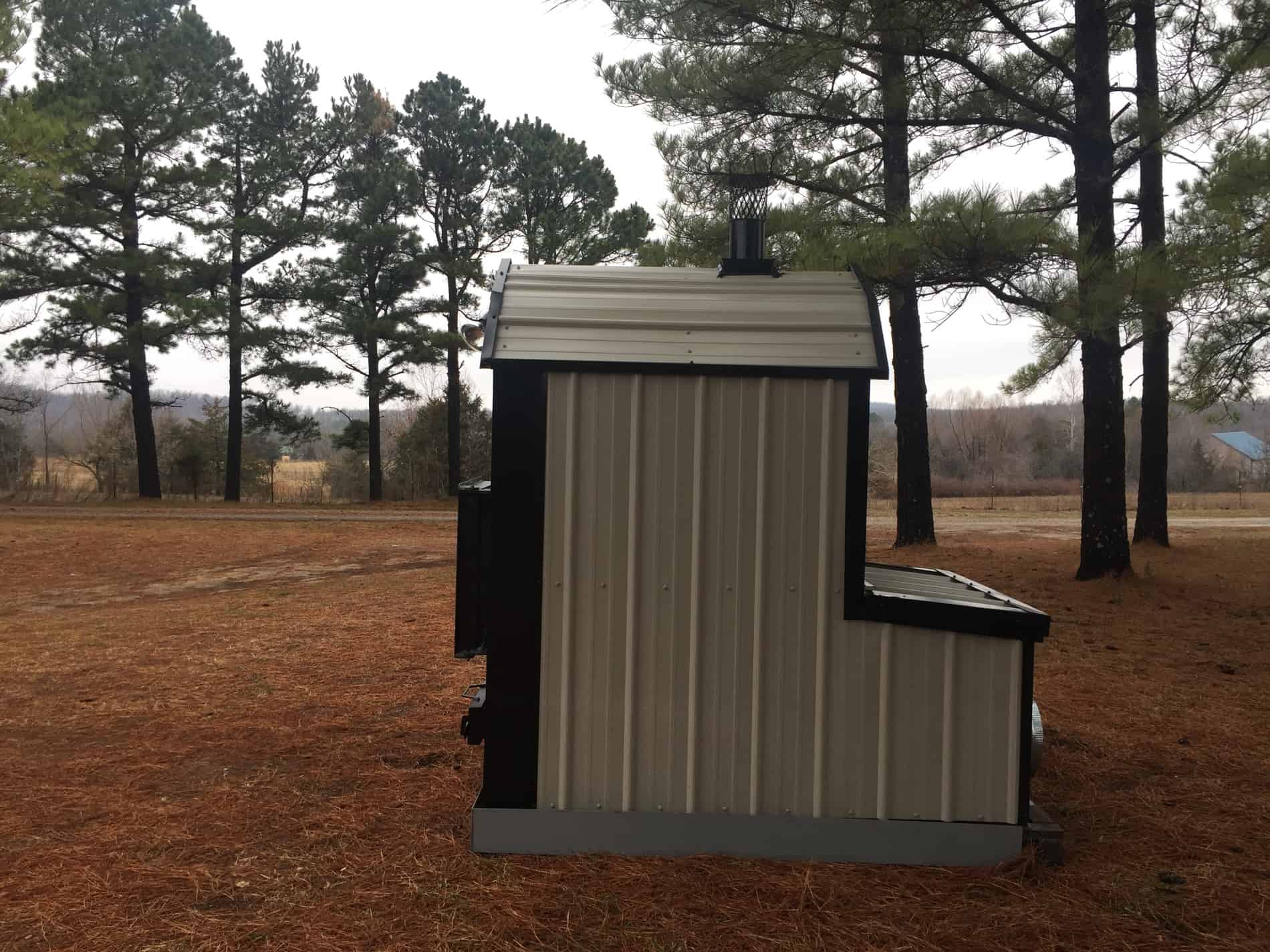

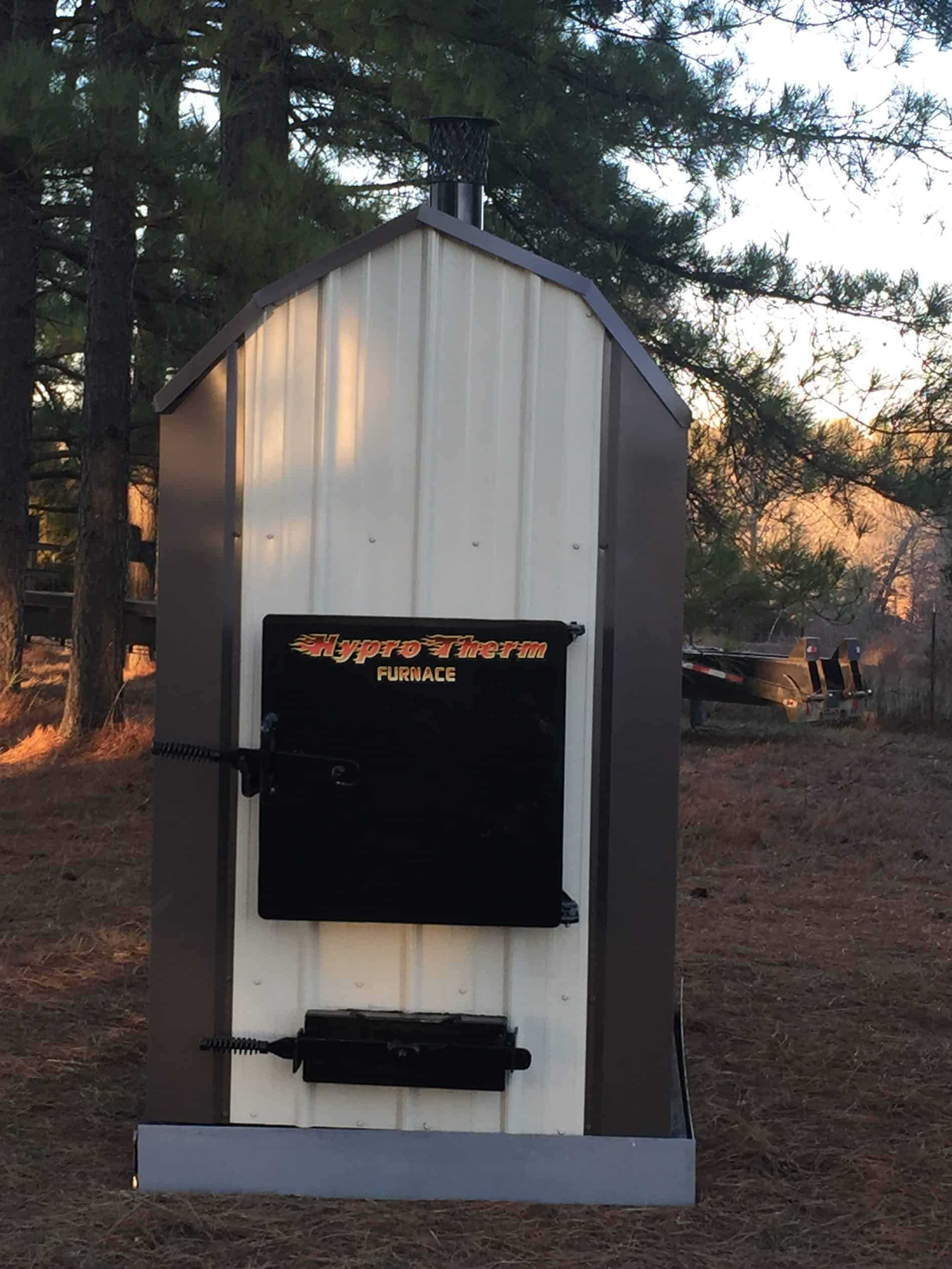

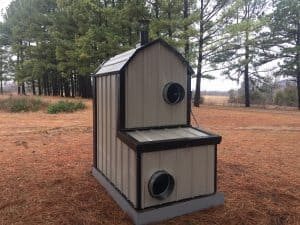

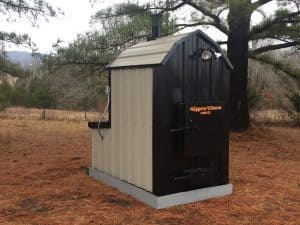

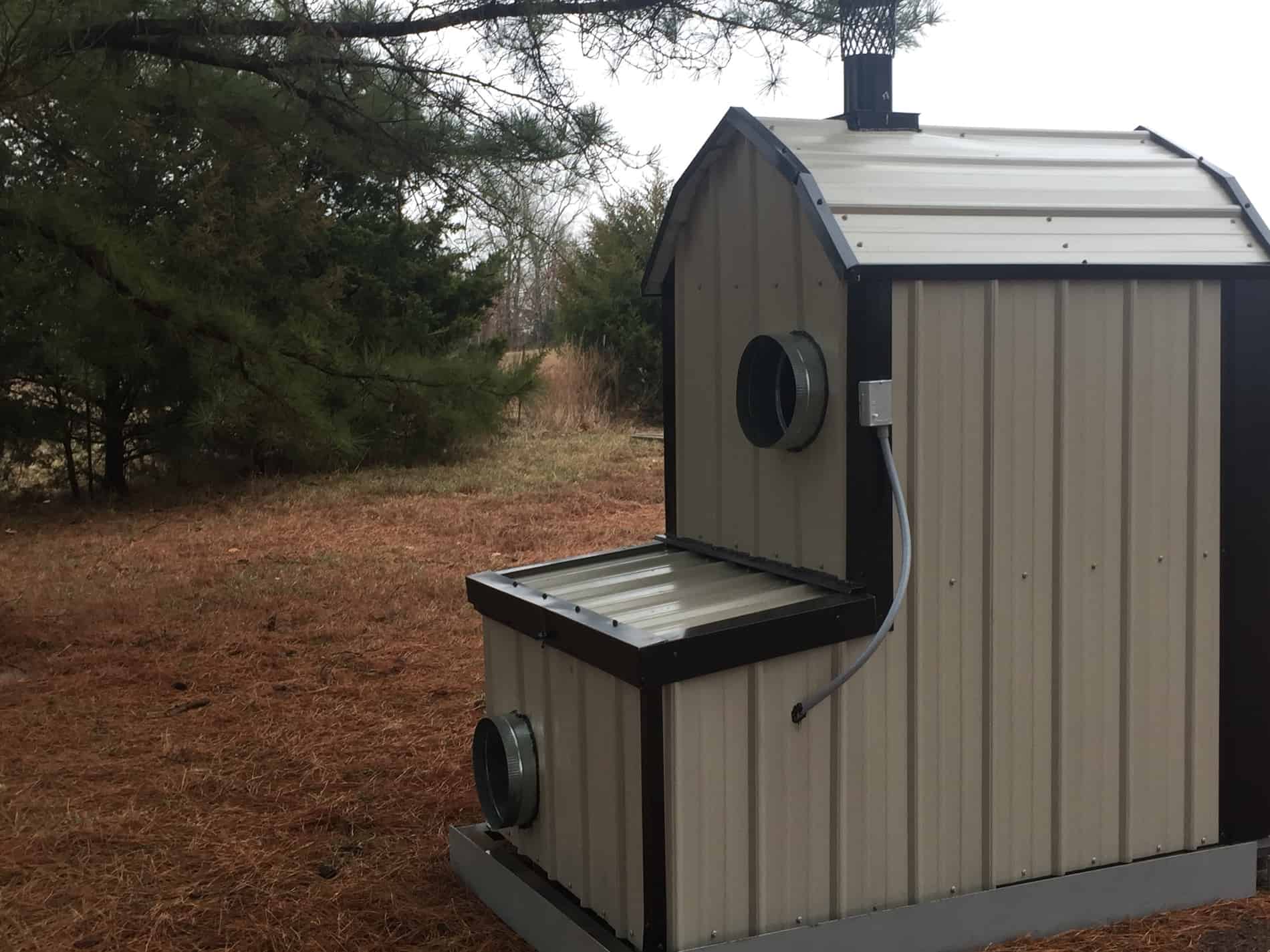

Click on a picture below to see all available pictures for this model.
