Outdoor Wood Heating Furnaces That Do Not Require Water:
Hypro Therm has done it again! Backed by their years of experience, they have developed an OUTDOOR WOOD FURNACE that doesn’t need water!
Comes complete with a forced-air draft fan and automatic damper plus a full-size furnace squirrel cage fan (1500 CFM or 2000 CFM)
– IDEAL for homes or shops without an existing heating system! No ductwork? No radiators? No boiler? No problem!!
– Excellent for those people with cabins or homes that are left unattended.
– Use out built-in furnace fan instead of an air handler or utilize your current furnace!
– Before spending thousands on a furnace for your garage or ship plus many more thousands for fuel – choose a ThermoWind for virtually FREE HEAT!
– Eliminate the threat of fire by having the furnace away from the house, just like with our outdoor wood fired WATER furnace (often called a “boiler”).
– No carrying wood into the house, along with the bugs, bark and trash.
– NO SMOKE in the house either!
Only if you have a outside wood forced air furnace inside your can you use a ThermoWind because ductwork is needed, so an electric, gas, oil, propane furnace, etc, and heat pump or geothermal system can be used.
No boilers or radiant floor heating systems can be hooked up. However, you can add ductwork to any building (or not even use any ductwork) to heat a building.
We can even help you if you don’t have any heating system now!
In case of a power failure, you can still have a nice warn house, when everyone else is cold!!
ONLY in the case of power failure and if you want heat, it requires a 2000 Watt Generator for the ThermoWind 1000 model
(only $200 at Wal-mart)
or a standard portable 4000 watt generator for the ThermoWind 2000 model, (because of the startup power that the motors take), with plenty of power left over for lights, etc.
This furnace can go outside and does not have to be bolted to the house or go in the basement like every other model out there!

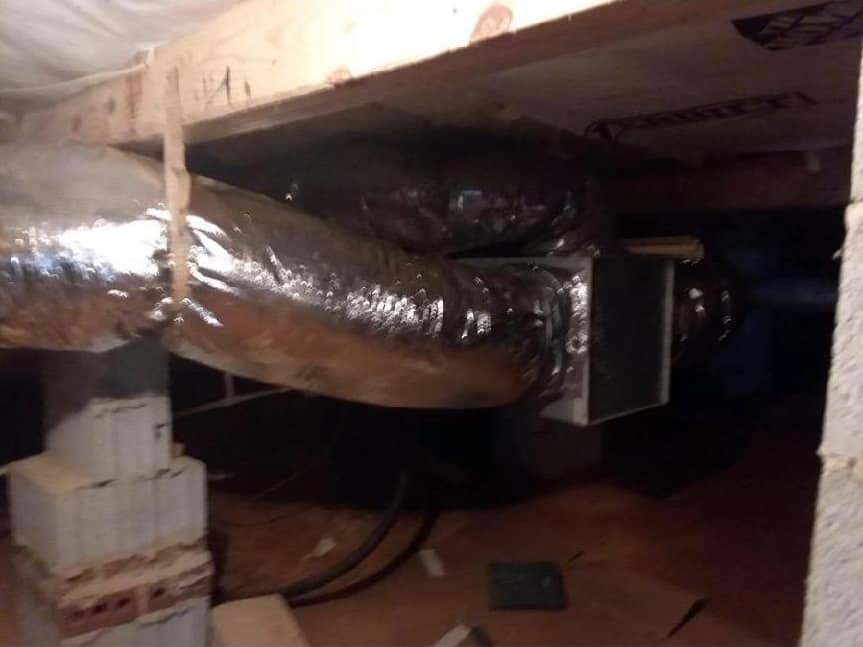

Heat is carried to your home through insulated 12″ pipes, buried underground or you can use regular and less expensive regular ductwork which you can insulate yourself.
According to the UL (Underwriters Laboratories) our furnace needs to be 5 feet away from flammables. The ThermoWind units cannot generally be more than 15 feet from your home because the temperature losses and airflow losses but in no case can be more than 30 feet away from your existing
You only need ductwork, thermostat and wire and a power wire to install.
No more worries about frozen water!
NO CHEMICALS or annual water tests! No pumps!
Also perfect for folks who have power failures often (you would need a generator to get heat but there is no worry about frozen water, etc)
Insulated Underground Pipe – Duct!
NOW there is no need to put the outdoor wood furnace forced air right next to the house or in the basement with our revolutionary insulated underground pipe! (not included)
These air pipes/ducts are only 12″ in diameter so a standard backhoe with a 24″ bucket can easily dig a trench for the pipes to lay side-by-side.
A 12″ round duct is equivalent to a duct that is 8″ X 15″ or 10″ X 12″ and you will get the same air flow of 2000 CFM.
An 8″ X 12″ or a 10″ X 10″ will give max 1500 CFM.
We are the only manufacturer that is doing this!
Air & Water Tight Foamed Walls on underground pipe.
Easy to Install
You only need ductwork, thermostat and thermostat wire and a power wire.
Quiet and Efficient PVC FREE ductwork
If you have any questions about our cheap forced air outdoor wood furnace, call our National Sales Team at (800) 780-4302
