Royall 6200 Outdoor Sheltered Wood Boiler

Burns wood or coal

$10,597.32

Commercial-Grade Outdoor Wood Heating with 200,000 BTU Performance

The Royall 6200 Outdoor Sheltered Wood Boiler is designed for property owners who need dependable, high-capacity hydronic heating while keeping the boiler system outside the building. Delivering up to 200,000 BTU of heating power, the 6200 is an excellent solution for larger homes, workshops, agricultural buildings, small businesses, and multi-zone heating applications.

Built with heavy-duty steel construction and protected by an insulated outdoor shelter, the Royall 6200 combines proven wood-burning technology with the convenience of outdoor installation.

Heat Larger Buildings with Confidence

The Royall 6200 is engineered to provide consistent, even heat for buildings up to approximately 4,500 square feet. Whether you’re heating a residence, shop, garage, barn, or commercial facility, this boiler delivers the performance needed to maintain comfort throughout the coldest months of the year.

The pressurized boiler design allows for easy integration with existing hydronic heating systems, making it an ideal upgrade or supplemental heat source.

Outdoor Sheltered Design

Unlike traditional boiler installations, the 6200 is housed inside a durable outdoor shelter wrapped with R-19 insulation. This weather-protected design keeps the boiler protected from the elements while moving wood handling, ash removal, and routine maintenance outside of the building.

Benefits of an Outdoor Sheltered Boiler

  • Keeps firewood, ash, and boiler maintenance outdoors
  • Frees up valuable indoor mechanical room space
  • Protects the boiler from rain, snow, and harsh weather
  • Reduces indoor dust and debris
  • Provides convenient access for loading and cleaning
  • Easily connects to existing heating systems

Efficient Forced Draft Combustion

The Royall 6200 utilizes a forced draft combustion system that introduces air beneath the cast iron rocker grates, promoting efficient bottom-up wood combustion. This proven design helps maximize heat output while maintaining stable water temperatures throughout the heating cycle.

Key combustion features include:

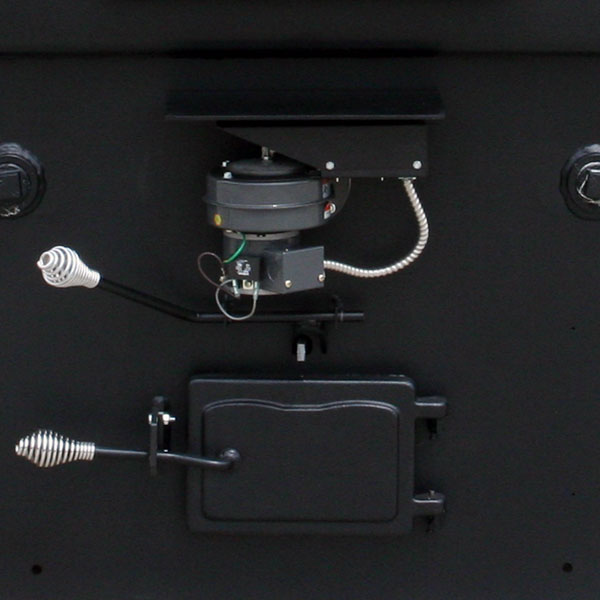

  • 50 CFM forced draft fan
  • Automatic damper shutoff

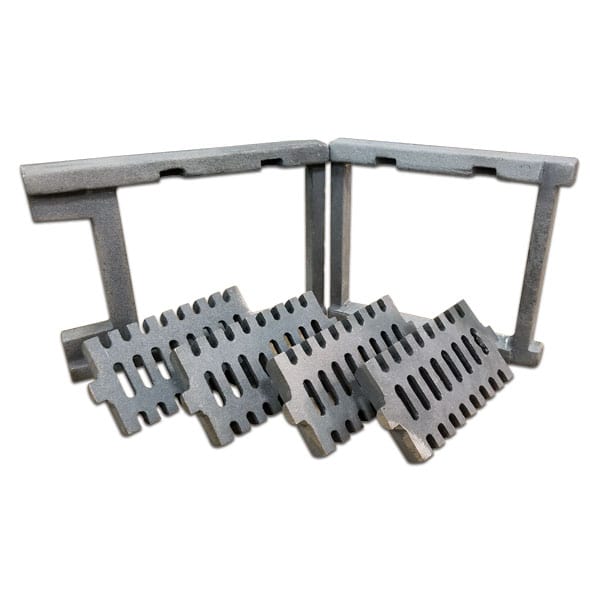

  • Four-piece cast iron rocker grate system
  • Large-capacity firebox
  • Full firebrick-lined combustion chamber
  • Heavy-duty steel construction

Large Firebox for Extended Burn Times

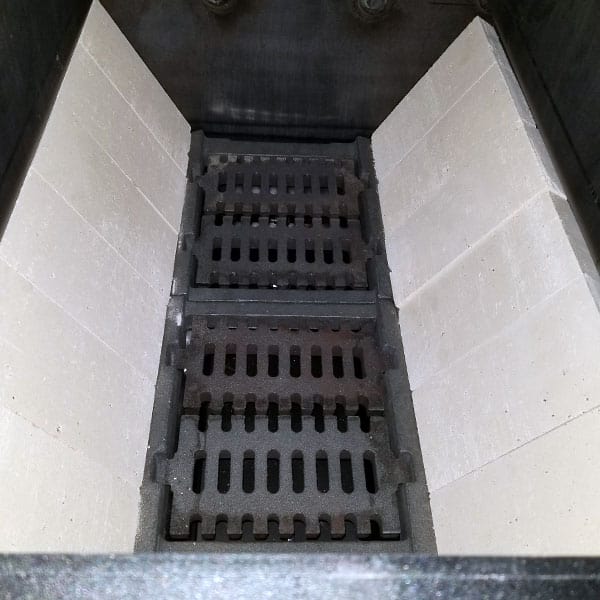

The spacious 13 cubic foot firebox accommodates logs up to 26 inches long, reducing loading frequency while providing substantial heating capacity. Combined with a 73-gallon water jacket, the boiler is built to deliver steady heat for demanding heating applications.

Royall 6200 Specifications

Boiler Specifications

  • Heating Capacity: 200,000 BTU
  • Recommended Heating Area: Up to 4,500 sq. ft.
  • Boiler Dimensions: 59″ x 34″ x 38″
  • Firebox Capacity: 13 cubic feet
  • Water Capacity: 73 gallons
  • Maximum Log Length: 26 inches

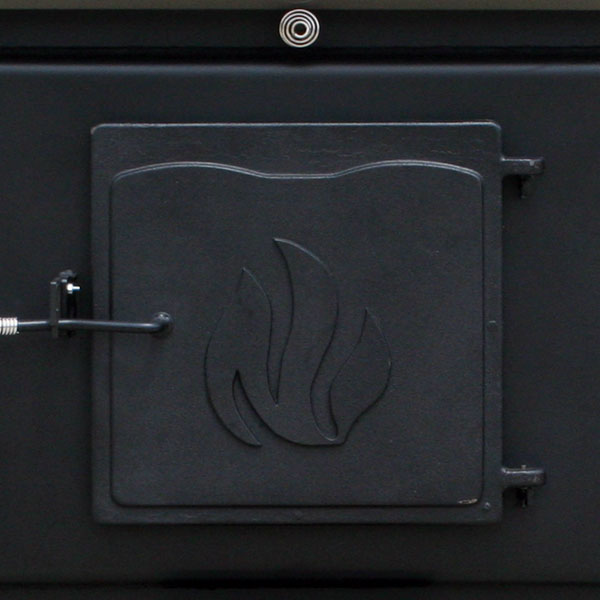

  • Fuel Door Opening: 17″ x 17″
  • Ash Door Opening: 5″ x 7″
  • Flue Size: 6 inches
  • Supply & Return Connections: 2″ FNPT
  • UL391 Rated
  • 1/4″ and 5/16″ steel construction
  • Powder-coated finish

Outdoor Shelter Specifications

  • Shelter Dimensions: 77.5″ x 49″ x 83″
  • 12-gauge steel shelter base
  • 16-gauge steel shelter roof and side panels
  • High-quality powder-coated finish
  • Approximate installed weight: 2,384 lbs.

Compatible Heating Systems

The Royall 6200 Outdoor Sheltered Boiler works with a wide variety of hydronic heating applications, including:

  • Radiant floor heating
  • Baseboard hot water systems
  • Water-to-air heat exchangers
  • Garage and shop heating systems
  • Agricultural buildings
  • Commercial heating systems
  • Domestic hot water production
  • Multi-building heating networks

The boiler can operate as a primary heating source or alongside propane, natural gas, electric, or fuel oil systems.

Built for Long-Term Reliability

Royall boilers have been manufactured in Wisconsin for decades and are known for their rugged construction and dependable performance. The 6200 features thick steel construction, cast iron grates, replaceable firebrick, and serviceable components designed to provide years of reliable operation.

For property owners seeking commercial-grade wood-fired heating with the convenience of outdoor installation, the Royall 6200 Outdoor Sheltered Wood Boiler delivers the capacity, durability, and performance needed to heat larger spaces efficiently and economically.
