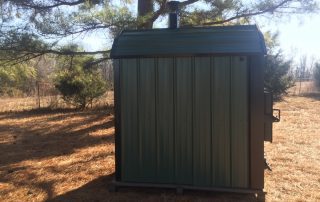

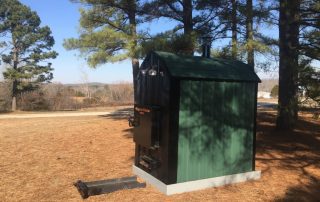

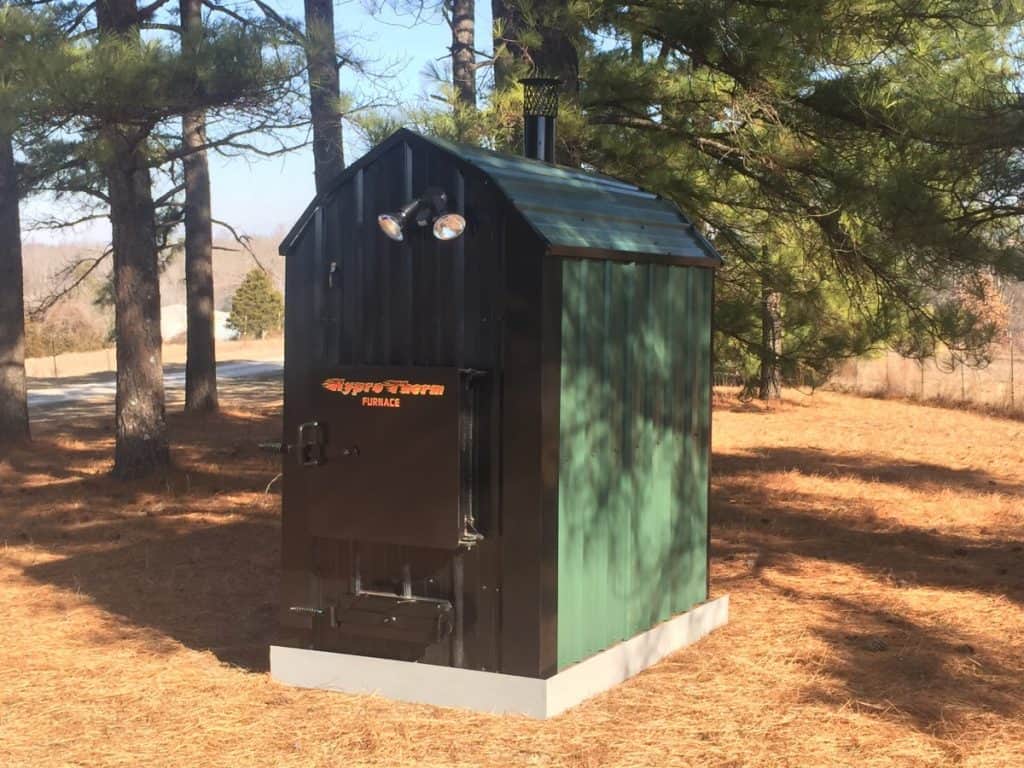

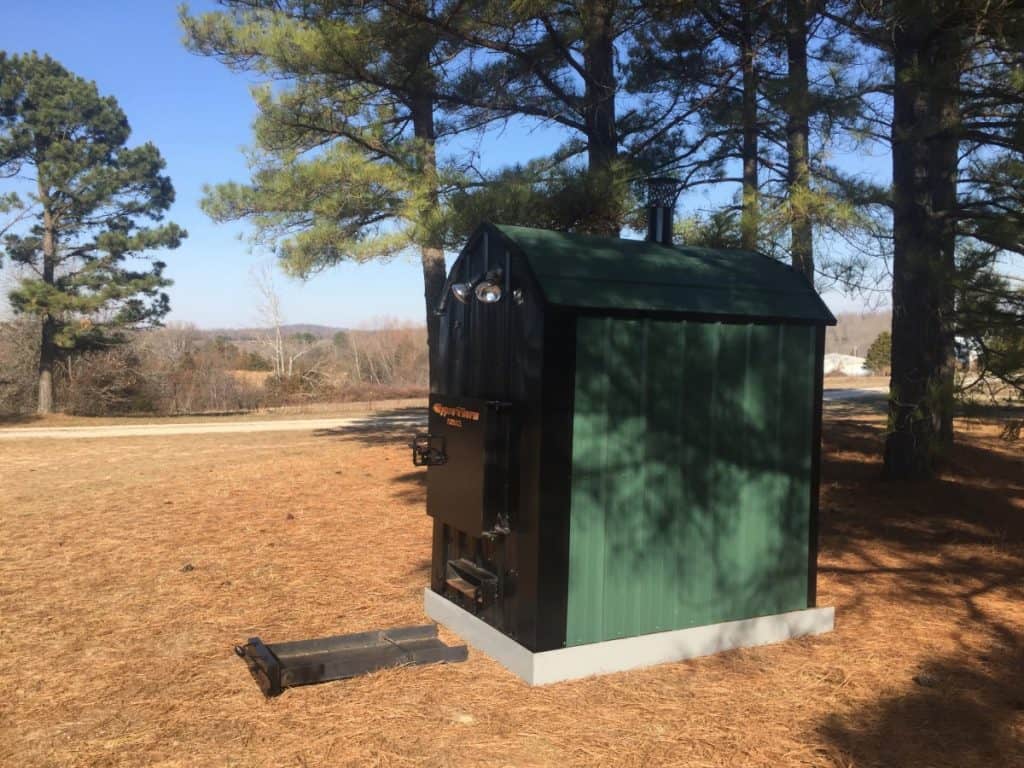

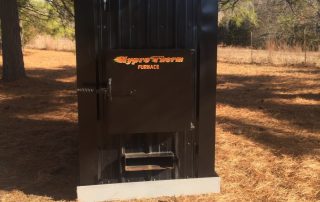

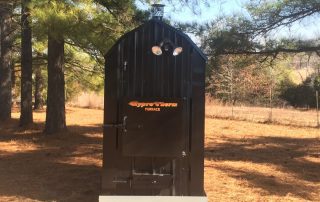

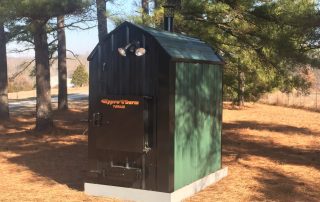

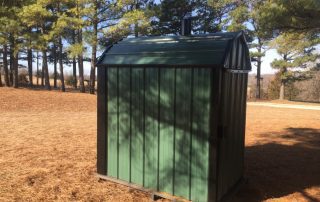

The Hyprotherm, Front Loading, Hydronic series is a front loading furnace with more water capacity and a larger firebox then any other furnace in its class. These wood furnaces feature fireboxes that are 3/8” thick. The water jacket bottom is also 3/8” thick with the sides and top being 3/16”. All of these front loading furnaces come with large 24” x 24” fuel fill doors and removable ash pans to make ash removal simple. They have a flat cast grate and each furnace is pre wired with only one connection to a power supply necessary, making them basically plug and play. Each comes with; lock down vault assembly door latch, two 1” supply and two 1” return nipples. Also includes a water level sight gauge and a digital thermostat to control the combustion blower.
These models are for commercial use only and can be fitted with a shaker grate system upgrade for $576.00
The Standard Insulation Package on our furnaces is:
Three inches of Knauf ET Blanket = R- 11.5 + One quarter inch Solar Guard = R- 11.6 on side walls for a standard insulation of R- 23.10
Two inches of Morgan Super Wool Blanket on front of furnace and in the door for a standard insulation of R- 56.80
If you want the best insulated furnace in the industry, we offer a Cold Weather Package for an additional $325.00.
This amazing package covers the entire furnace in Morgan Super Wool instead of Knauf ET. The Cold Weather Package on our Hyprotherm furnaces is:
Two inches of Morgan Super Wool Blanket = R- 56.80 + One quarter inch Solar Guard = R- 11.60 for a Cold Weather Package R-value of 68.40
Three inches of Morgan Super Wool Blanket on front of furnace and in the door for a Cold Weather Package R-value of 88.23
You can actually put your hand under Morgan Super Wool, heat the other side of it with a blow torch and not burn your hand! Don’t believe us? Find that video and more insulation information by going to the insulation page.
