Click on a picture below to see all available pictures for this model.

The Hyprotherm, Front Loading, Hydronic series is a front loading furnace with more water capacity and a larger firebox then any other furnace in its class. These wood furnaces feature fireboxes that are 3/8” thick. The water jacket bottom is also 3/8” thick with the sides and top being 3/16”. All of these front loading furnaces come with large 24” x 24” fuel fill doors and removable ash pans to make ash removal simple. They have a flat cast grate and each furnace is pre wired with only one connection to a power supply necessary, making them basically plug and play. Each comes with; lock down vault assembly door latch, two 1” supply and two 1” return nipples. Also includes a water level sight gauge and a digital thermostat to control the combustion blower.

These models are for commercial use only and can be fitted with a shaker grate system upgrade for $288.00


  • Water Capacity; 100 gallon
  • Water Jacket Thickness Bottom; 3/8”
  • Water Jacket Thickness Sides and Top; 3/16”
  • Firebox Capacity; 16 ½” cubic feet
  • Firebox Dimensions; 3/8” thick @ 28”L x 30”W x 34”H

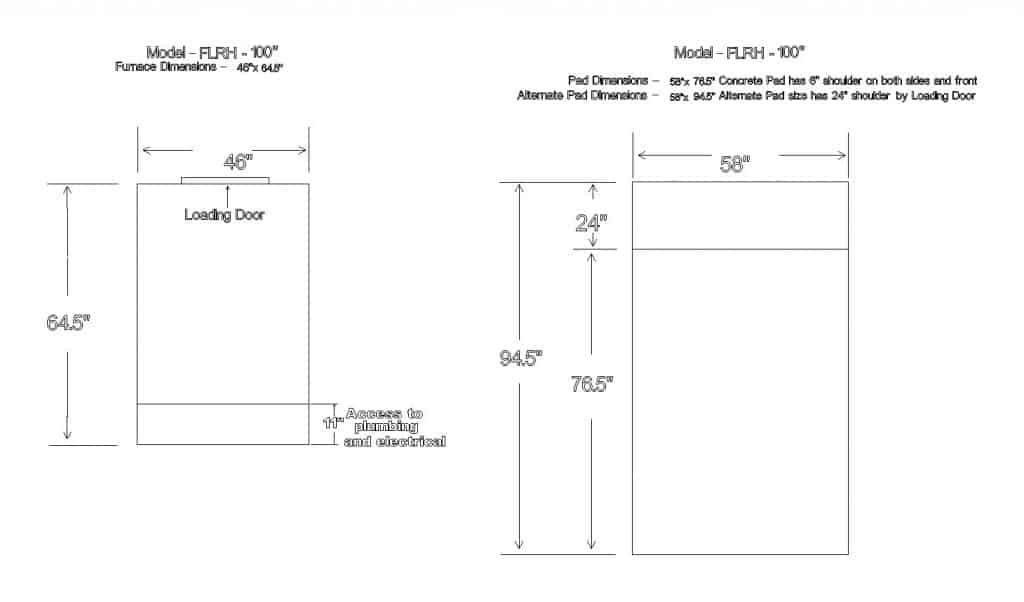

  • Overall Dimensions: 64 ½”L x 46”W x 87”H
  • Crated Dimensions: 73″L x 51″W x 95″H
  • Shipping Weight: 1,774 lbs Approx
  • Fuel Door; 24” x 24”
  • Grate System; Flat Cast (Shaker Grate Upgrade Optional)
  • Ash Cleanout: Removable Ash Pan
  • BTUs; 112,050 @ 180 degree
  • Heatable Area; 2,800 sq ft Approx

The standard insulation on our furnaces is:

2″ of Morgan Super Wool with an R value of 56.8 on the tops and fronts and 3″ of Knauf ET Blanket + 1/4″ of Solar Guard for a combined R value of 23.1 on the rest of the furnace

The cold weather package is R-88.23 on tops and fronts and 68.4 on the rest of the furnace and is available for an additional $307.00

You can find out more insulation information including video demonstrations by going to the insulation page.

Hydronic Installation Manual
