Made With The Best Pex Money Can Buy!
Insulated Pex Tubing 1″ Non Barrier -by the foot
$6.99
Description
NOTE: this product ships to a commercial business with NO home on the property. West of the Dakotas and East of Pennsylvania will be subject to additional shipping charges if they exceed the basic shipping rate. Trucks do not call they just show up and expect to be unloaded with a fork lift or loading dock. (RESTRICTIONS CAN APPLY such as, but not limited to: farms, schools, construction sites, limited access, rural businesses, churches, and home businesses) If you want home delivery or a have a business that DOES NOT APPLY, you must add $70 for home delivery. You can purchase the residential delivery by requesting an invoice or messaging us to send you a paypal request for the additional service. If you do not give us a qualifying address and did not pay for the rural/residential charges, we would contact you to request the information or payment. IF YOU NEED A LIFTGATE YOU MUST message FOR A QUOTE! If you make any changes to the shipment with the shipping company once it has left, (adding a call before, lift gate or any other added service, you will be subject to a minimum $100 charge depending on the cost of the added services. This product weighs under 1 pound per foot. It will ship on a pallet.

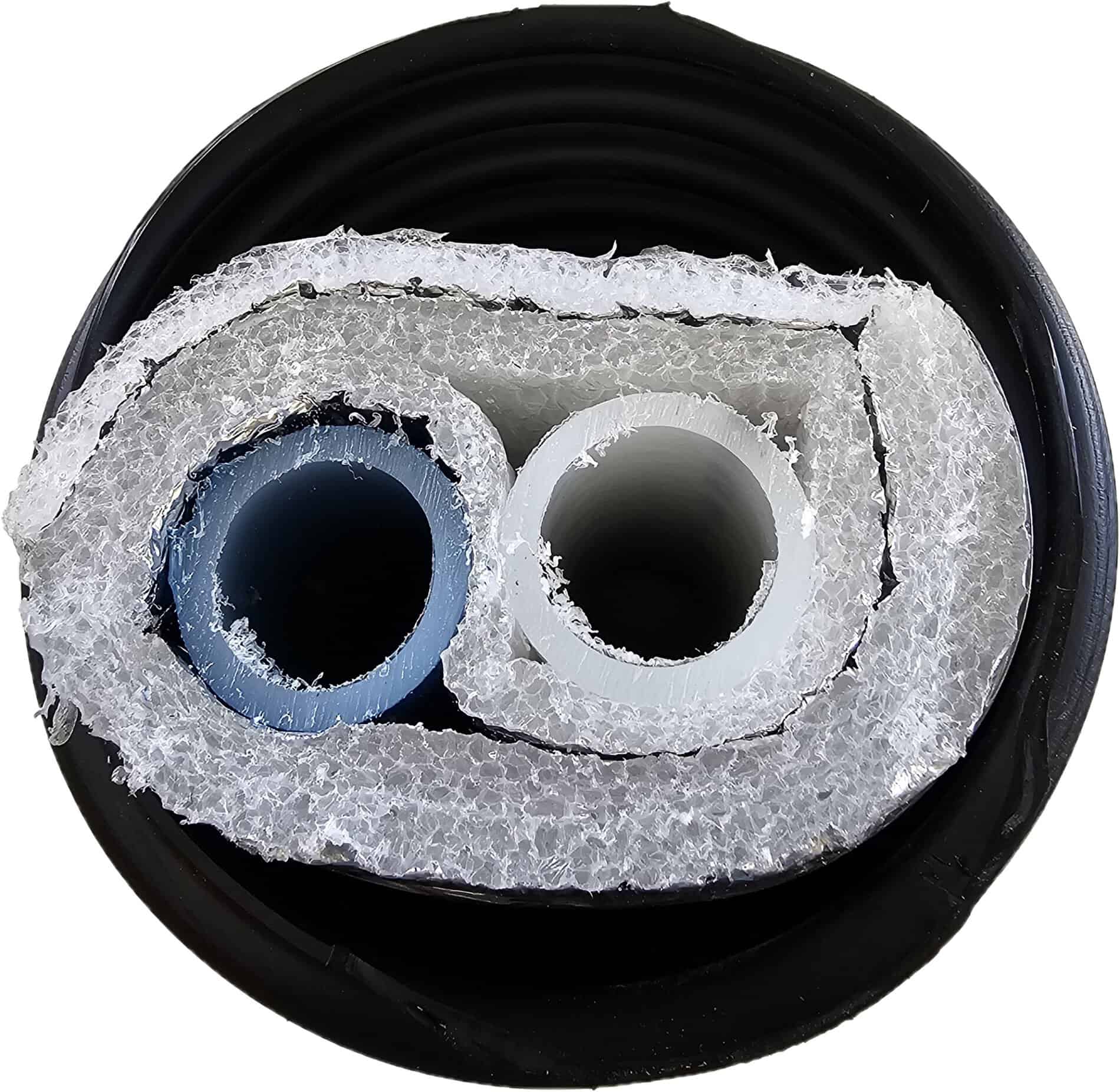

This product showcases the best of both worlds, while offering our standard superior dual line 1″ Rehau CLASS A pex, along with our NEW and improved wrapped style closed cell PE insulation. All cased beautifully in our waterproof 4.7″ OD tile! This pipe also features a foil coating between layers, to prevent heat loss. You can’t get much better than this! PLUS, we can offer HUGE savings!!! Our components for our wrapped pipe are USA made and is MANUFACTURED right here IN THE USA!!!! Our Wrap products are manufactured with the highest quality of materials, the competitors can’t match us!
Specs:
PEX
-
USA 1″ Rehau PEX A non barrier pex tubing – dual line
-

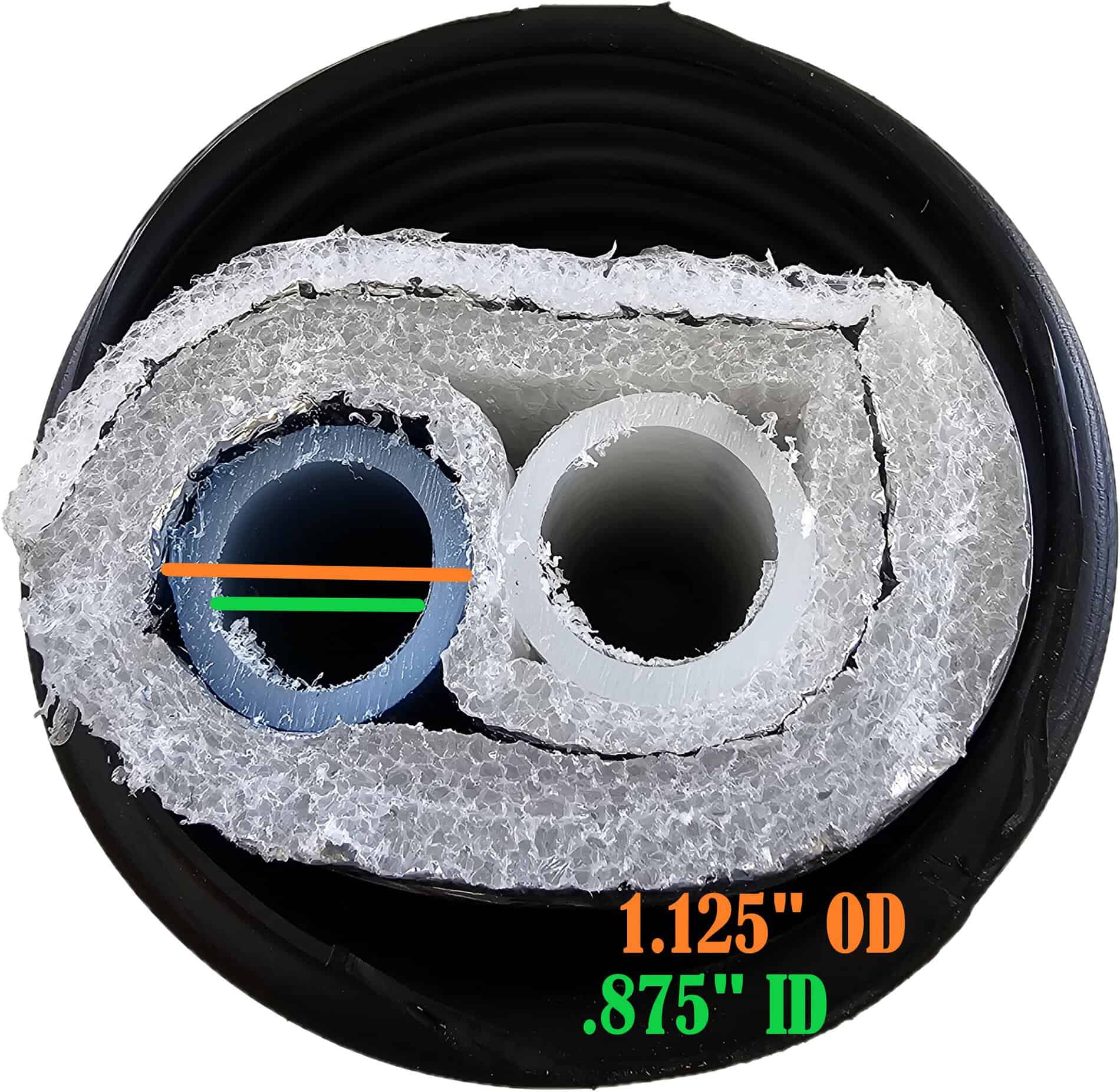

.875 in ID pex
-
1.125 in OD pex
- Wall thickness: .125 in
- One Blue Pex line, one White (opaque) Pex line – BOTH CLASS A REHAU PEX
- Capacity gal/ft: 0.0316
- Max working temp: -40deg to 180 deg
- Max Pressure: 150 PSI
- Tensile Strength: 4194 to 4355 PSI at 68 DEG F, 2610 to 2900 PSI at 176 DEG F
TILE
- Heavy Duty DOT approved, commercial quality corrugated tile, meets or exceeds ASTM F667
-

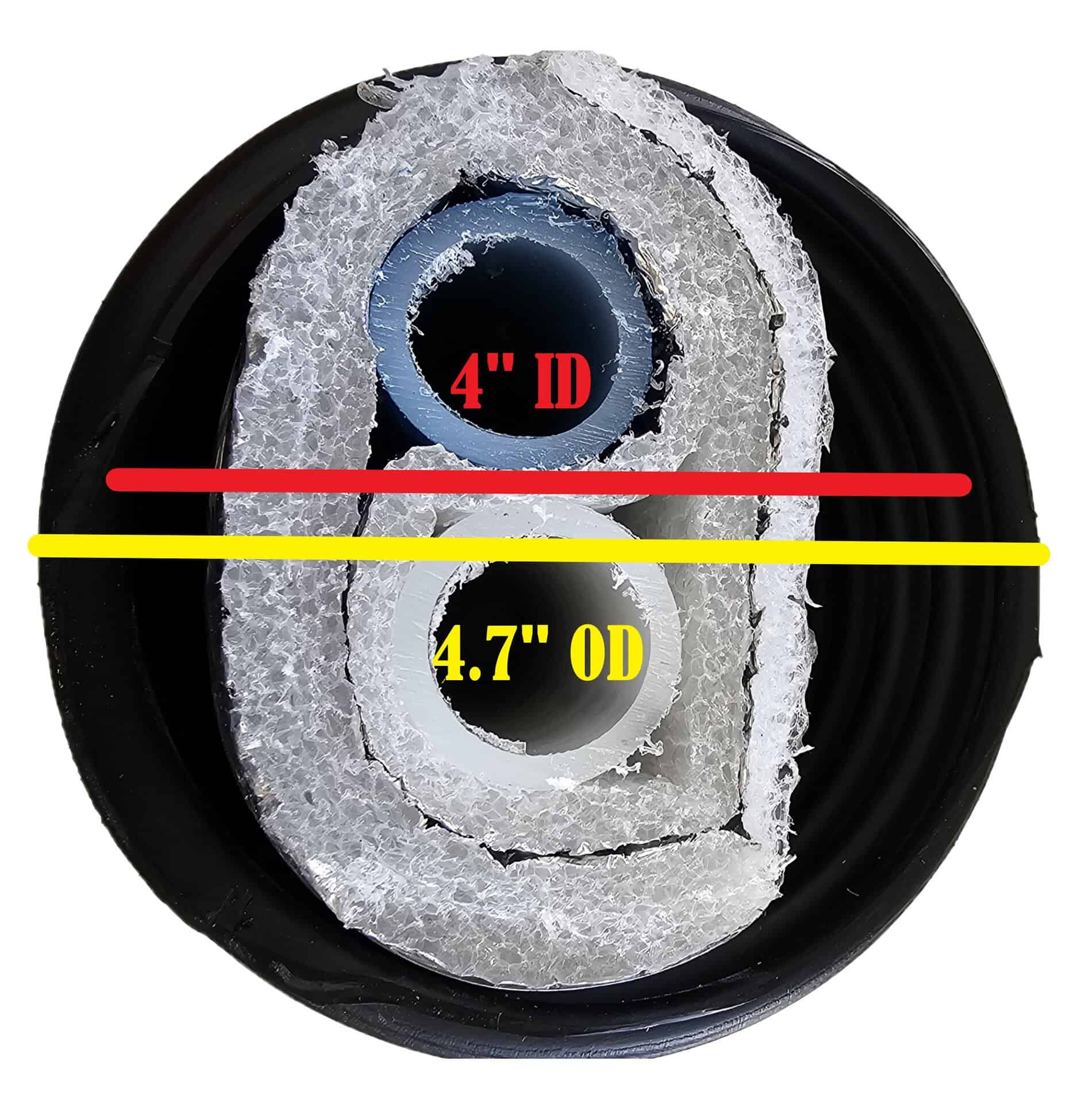

Tile 4″ ID – 4.7″ OD
- Corrugation Pitch: .67 In
OTHER
-
Commercial Quality Closed Cell PE Foam insulation 1/4″ per layer
-
Maximum roll length: 500ft
-
Should be buried 18″ – 24″ underground ( Casing it in PVC and burying it deeper if under driveway or if you are driving heavy equipment over it would be recommended )
- Less than 1deg of heat loss per 100ft
Available exclusively from Wood Heating Solutions.
