Description

Technical Specs

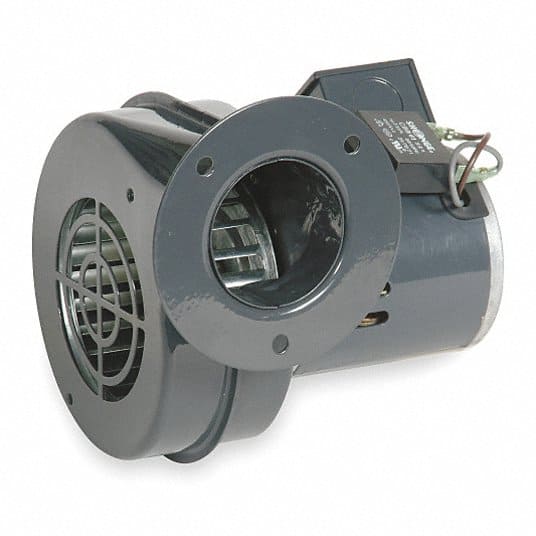

  • ItemOEM Blower
  • Blower Outlet ShapeRound
  • With FlangeYes
  • Blower Wheel Diameter3 15/16 in
  • Blower Wheel Width1 7/8 in
  • Blower ItemOEM Specialty Blower
  • Blower Voltage115V AC
  • Blower Motor TypePermanent Split Capacitor
  • Blower Thermal ProtectionAuto
  • Blower Conduit BoxYes
  • CFM @ 0.000-In. SP75
  • CFM @ 0.100-In. SP71
  • CFM @ 0.200-In. SP68
  • CFM @ 0.300-In. SP66
  • CFM @ 0.400-In. SP61
  • CFM @ 0.500-In. SP56
  • Hz50/60
  • Phase1
  • Full Load Amps0.45
  • RPM3016
  • Bearing TypeBall
  • Motor EnclosureOpen
  • Motor InsulationClass B
  • Lead Length13 in
  • Max. Ambient Temp.104 Degrees F
  • Max. Inlet Temp.104 Degrees F
  • Inlet Dia.3 1/8 in
  • Outlet Dia.2 1/8 in
  • Overall Height5 3/4 in
  • Overall Width6 1/4 in
  • Overall Depth6 7/16 in
  • Wheel TypeForward Curve
  • Drive TypeDirect
  • Mounting PositionAll Position
  • Housing FinishEnamel
  • Housing MaterialRolled Steel
  • Housing ColorGray
  • Agency ComplianceCE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
  • Replaces4C443
  • IncludesDischarge Mounting Flange
  • Dimension A6 7/16 in
  • Dimension B6 1/2 in
  • Dimension C6 1/4 in
  • Dimension D2 1/4 in
  • Dimension E5 3/4 in
  • Dimension F2 1/2 in
  • Dimension J4 1/16 in
  • Dimension L2 3/8 in
  • Dimension M2 13/16 in

Available exclusively from Wood Heating Solutions.
