Forced Air Furnaces

Forced Air Furnaces

Watch this video
first on the outdoor
forced air wood furnace:

If you are interested in turning the forced air furnace into one that burns coal, you can simply add the shaker grate system that is demonstrated in the video below!

Easy installation!  12 inch galvanized pipe wrapped with silverback insulation.  It can be installed above ground or buried inside of a bigger diameter pipe and simply build a protection roof over the exposed galvanized pipe to prevent the exposed pipe from deteriorating!

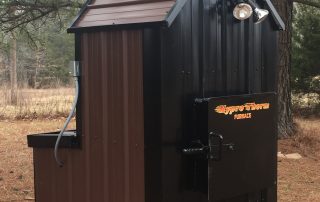

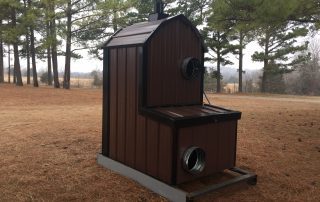

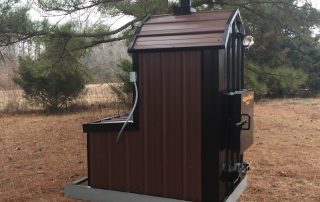

Hypro Therm Outdoor Wood Furnace Forced Air ThermoWinds

Now with a 2 foot x 2 foot door on all models
and a REMOVABLE ash pan!

ThermoWind 1000
ONLY $4397!

Rated to Heat up to 3500 sq. ft.

It is rated at 91,000 BTU burning a good hardwood like oak

and better hardwoods like Hickory, Locust or Hedge can

potentially give you 25% MORE BTUs (no water to freeze)

Hypro Therm Thermowind 1000 Specifications and Dimensions
46” x 62.75” – not crated
1480 lbs not crated
Crated Approx: 2090 lbs for wood model, 2134 lbs for coal model
Crate Specs: Height 97”, Width 52”, Length: 73 1/2” Weight approx 150 lb
Firebox Size: 36” cylinder –  36”W x 28”D x 26”H + 10” for Ash Pan***
Concrete pad is recommended but not necessary!
Suggested pad size 48” x 106”

ThermoWind 2000
ONLY $5047

Rated to Heat up to 5500 sq. ft.

Has a bigger 2000 CFM blower and a bigger firebox (42″ vs. 28″ deep)

it’s 50% bigger and is only $650 more!

It is rated at 135,000 BTU burning a good hardwood like oak

Hypro Therm Thermowind 2000 Specifications and Dimensions
46” x 77” – not crated
1840 lbs not crated
Crated Approx: 2420 lbs for wood model, 2495 lbs for coal model
Crate Specs: Height 97”, Width 52”, Length: 91 1/2” Weight approx 150 lb
Firebox Size: 36” cylinder – 36”W x 42”D x 26”H + 10” for Ash Pan
Concrete pad is recommended but not necessary!
Suggested pad size 48” x 122”

ThermoWind 3000
ONLY $5477

Click HERE for a bigger image

Rated to Heat up to 6875 sq. ft.

55″ deep firebox with 2000 CFM 3-speed fan

It is rated at 165,000 BTU burning a good hardwood like oak

Hypro Therm Thermowind 3000 Specifications and Dimensions
46” x 90.5” – not crated
2160 lbs not crated
Crated Approx: 2766 lbs for wood model, 2800 lbs for coal model
Crate Specs: Height 97”, Width 52”, Length: 97 1/2” Weight approx 200 lb
Firebox Size: 36” cylinder – 36”W x 55”D x 26”H + 10” for Ash Pan
Concrete pad is recommended but not necessary!
Suggested pad size 48” x 136”

ThermoWind 4000
ONLY $6947!

Click HERE for a bigger image.

Rated to Heat up to 8500+ sq. ft.

Loading twice a day but it will heat more but it has to be loaded more often

The ThermoWind 4000 is designed to heat large buildings.  It will have two full-size furnace fans on it (2000 CFM each), to better heat a large building – with a total of 4 ducts ( 2 supply and 2 return). It has a 68″ firebox that is 3 feet wide and has two firebox doors; one on each end, to better and easier load the furnace.  It has two forced air draft fans with automatic dampers on them.

It is rated at 205,000 BTU burning a good hardwood like oak

Hypro Therm Thermowind 4000 Specifications and Dimensions
71” x 76” – not crated
2800 lbs not crated
Crate Specs: Height 97”, Width 80 1/2”, Length: 91 1/2” Weight approx 200 lb
Firebox Size: 36” cylinder – 36”W x 68”D x 26”H + 10” for Ash Pan
Concrete pad is recommended but not necessary!
Suggested pad size 71” x 114”

Forced air fan for home and forced air fan for furnace with solenoid activated damper.

1500 CFM blower on TW1000 above.

You get a 2000 CFM blower on the ThermoWind 2000, 3000 and two of them on the TW4000.

The fans and thermostat included, have a one-year warranty.

You get a solenoid activated damper too!

This automatic damper, which is now standard equipment on the water models, will save you a lot of wood!
(no electronics or circuit boards to make this work!)

We had customers asking us to put this on our wood furnaces, after trying the exact same dampers that were homemade. They had such good experiences that they asked us to start offering this as an option and now we have made it standard on every single model that we make. Air would no longer bleed into the firebox when the fan turns off and this is so much better than a manual damper that you have to adjust!

All parts are available everywhere.
There are NO proprietary parts or circuit boards!

ONLY in the event of a power failure, if you want heat, this furnace requires a 2000 Watt Generator for the Thermowind 1000 model and a standard portable 4000 watt generator for the 2000 and 3000 models because of the startup power that the motors take.

You MAY need an heating and air guy to hook up the duct work, but all you really need is an adapter from a round 12″ pipe to your rectangle (usually) pipe.

ductwork-flange

Everything is very simple and easy to do. There is a comprehensive manual, with lots of pictures and diagrams, that will help you every step of the way. You can also call me (Randy) or the factory for assistance.

outdoor wood burning furnace

Hypro Therm has done it again! Backed by their years of experience, they have developed an OUTDOOR WOOD FURNACE FORCED AIR that doesn’t need water!

Comes complete with a forced-air draft fan and automatic damper plus a full-size furnace squirrel cage fan (1500 CFM or 2000 CFM)

– IDEAL for homes or shops without an existing heating system! No ductwork? No radiators? No boiler? No problem!!

– Excellent for those people with cabins or homes that are left unattended.

– Use out built-in furnace fan instead of an air handler or utilize your current furnace!

– Before spending thousands on a furnace for your garage or ship plus many more thousands for fuel – choose a ThermoWind for virtually FREE HEAT!

– Eliminate the threat of fire by having the furnace away from the house, just like with our outdoor wood fired WATER furnace (often called a “boiler”).

– No carrying wood into the house, along with the bugs, bark and trash.

– NO SMOKE in the house either!

Only if you have a outside wood forced air furnace inside your can you use a ThermoWind because ductwork is needed, so an electric, gas, oil, propane furnace, etc, and heat pump or geothermal system can be used.

No boilers or radiant floor heating systems can be hooked up. However, you can add ductwork to any building (or not even use any ductwork) to heat a building.

We can even help you if you don’t have any heating system now!

In case of a power failure, you can still have a nice warn house, when everyone else is cold!!

ONLY in the case of power failure and if you want heat, it requires a 2000 Watt Generator for the ThermoWind 1000 model
(only $200 at Wal-mart)
or a standard portable 4000 watt generator for the ThermoWind 2000 model, (because of the startup power that the motors take), with plenty of power left over for lights, etc.

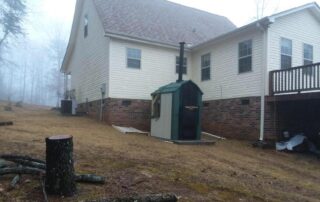

This furnace can go outside and does not have to be bolted to the house or go in the basement like every other model out there!

Heat is carried to your home through insulated 12″ pipes, buried underground or you can use regular and less expensive regular ductwork which you can insulate yourself.

According to the UL (Underwriters Laboratories) our furnace needs to be 5 feet away from flammables. The ThermoWind units cannot generally be more than 15 feet from your home because the temperature losses and airflow losses but in no case can be more than 30 feet away from your existing
ductwork.

You only need ductwork, thermostat and wire and a power wire to install.

No more worries about frozen water!

NO CHEMICALS or annual water tests! No pumps!

Also perfect for folks who have power failures often (you would need a generator to get heat but there is no worry about frozen water, etc)

Insulated Underground Pipe – Duct!

NOW there is no need to put the outdoor wood furnace forced air right next to the house or in the basement with our revolutionary insulated underground pipe! (not included)

These air pipes/ducts are only 12″ in diameter so a standard backhoe with a 24″ bucket can easily dig a trench for the pipes to lay side-by-side.

A 12″ round duct is equivalent to a duct that is 8″ X 15″ or 10″ X 12″ and you will get the same air flow of 2000 CFM.

An 8″ X 12″ or a 10″ X 10″ will give max 1500 CFM.

We are the only manufacturer that is doing this!

Air & Water Tight Foamed Walls on underground pipe.

Easy to Install

You only need ductwork, thermostat and thermostat wire and a power wire.

Quiet and Efficient PVC FREE ductwork

If you have any questions about our cheap forced air outdoor wood furnace, call Randy at (608) 399-4847
